Luggage Compartment Upholstery

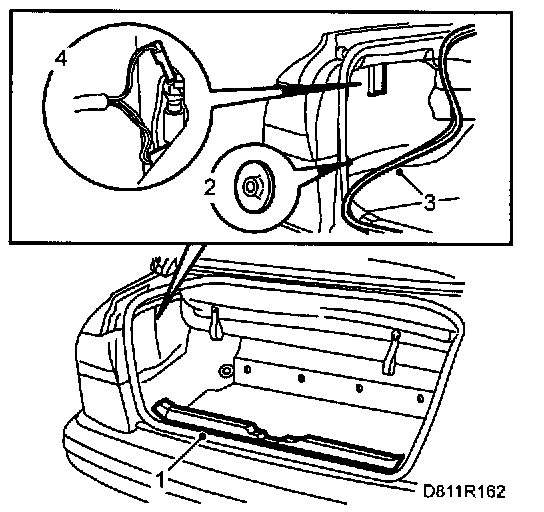

Removing
1 Remove the scuff plate.
2 Remove the clips securing the upholstery to the sides.







3 Loosen the luggage compartment seal.
4 Unplug the connector for the luggage compartment lighting.
5 Remove the clips securing the floor mat and remove it.







6 Remove the bolt that secures the load retention eye.
7 Remove the clips that secure the front ends of the upholstery. Remove the upholstery.

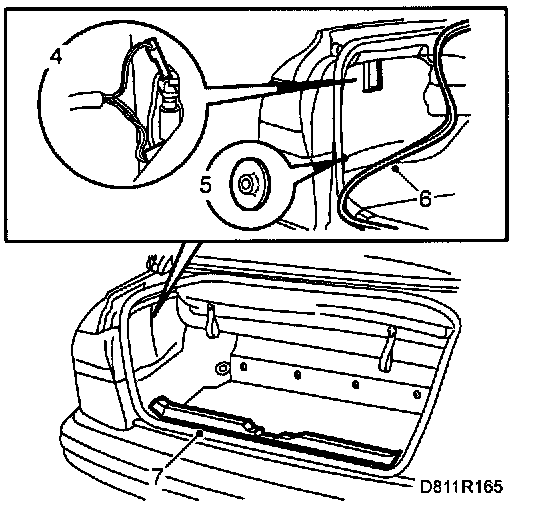

Fitting







1 Fit the upholstery and fasten the clips at the front ends.
2 Fit the load retention eye and tighten the bolt.

Tightening torque: 25 Nm (18.5 lbf ft)

3 Fit the floor mat and fasten the clips.
4 Plug in the connector for the luggage compartment lighting.







5 Fasten the clips securing the upholstery to the sides.
6 Fit the luggage compartment seal.
7 Refit the scuff plate.
