Front Seat Belt

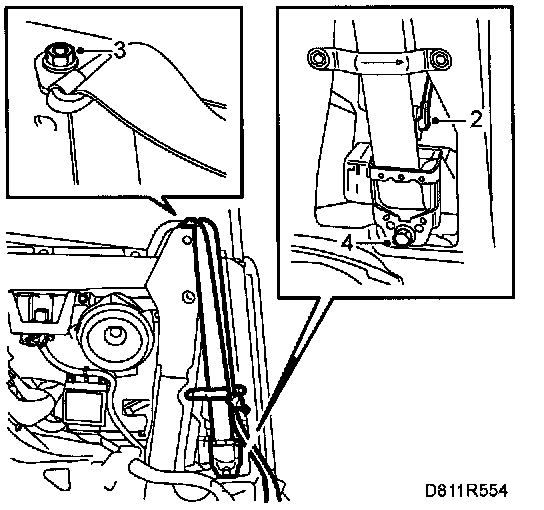

Removing
1 Remove the rear side upholstery.
2 Remove the connector for the belt tensioner.







3 Remove the bolt securing the strap guide.
4 Remove the bolt securing the seat belt roll. Remove the seat belt and the belt tensioner.

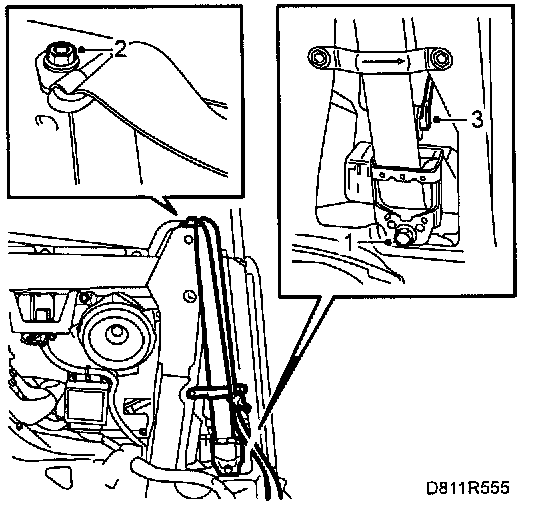

Fitting







1 Fit the seat belt roller and tighten the bolt securing it to the body.

Tightening torque: 45 Nm (33.3 lbf ft)

2 Tighten the bolt securing the strap guide.

Tightening torque: 45 Nm (33.3 lbf ft)

3 Plug in the connector for the belt tensioner
4 Refit the side upholstery.
