Fifth Bow

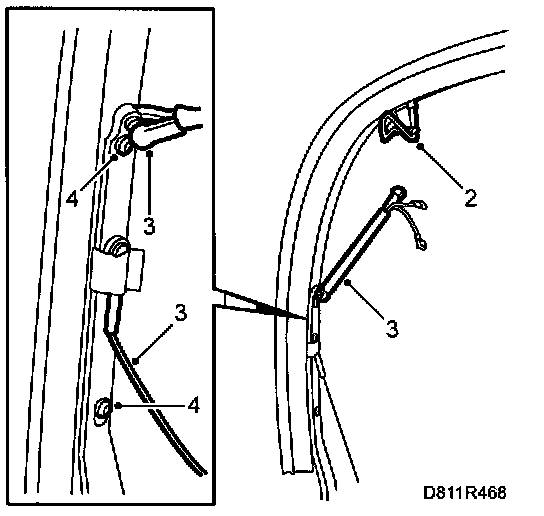

Removing







1 Remove the complete soft top package. See Soft Top Cover, Headlining and Rear Window.
2 Remove the lock fittings.
3 Remove the cable for the fourth bow and the window guide.
4 Mark the position of the screw heads on the fifth bow mountings and remove the screw.
5 Lift away the fifth bow.

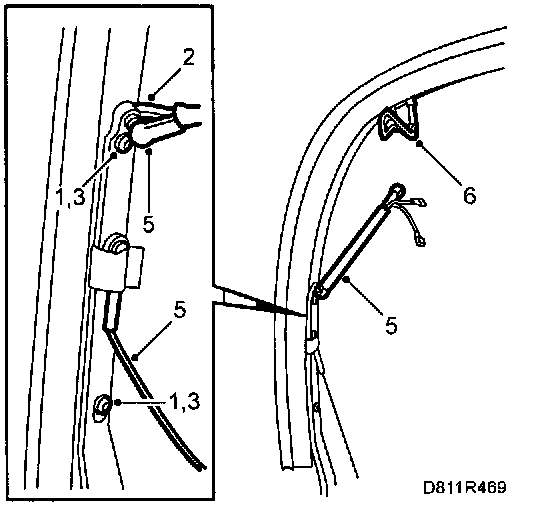

Fitting







1 Fit the fifth bow on the right side and fit the screws loosely.
2 Insert the leads for the electrically heated rear window in the groove.

IMPORTANT
Make sure that the cables are not pinched between the mounting and the fifth bow

3 Fasten the screws using the markings on the left side.
4 Tighten the screws according to the markings on the right side.
5 Fit the window guide and cable for the fourth bow.
6 Fit the lock fittings. Adjust the lock fittings. See Adjusting the Fifth Bow Lock.
7 Fit the soft top.
