Cementing the Interior Rear-View Mirror Base

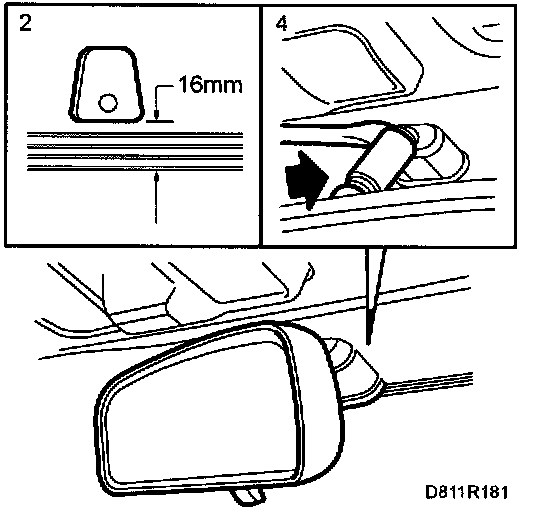

1 Mark the position on top of the windscreen, in the middle of the blackened area.
2 Measure 16 mm from the lower line and mark the position of the rear-view mirror base.
3 Cement the rear-view mirror base using glass adhesive pant number (45) 30 06 830.

IMPORTANT
Protect the windscreen under the rear-view mirror base with some fabric-backed tape if the screwdriver should slip.

4 Push the mirror down on the base. Use a screwdriver to push it all the way down.
