Backrest Upholstery

Removing

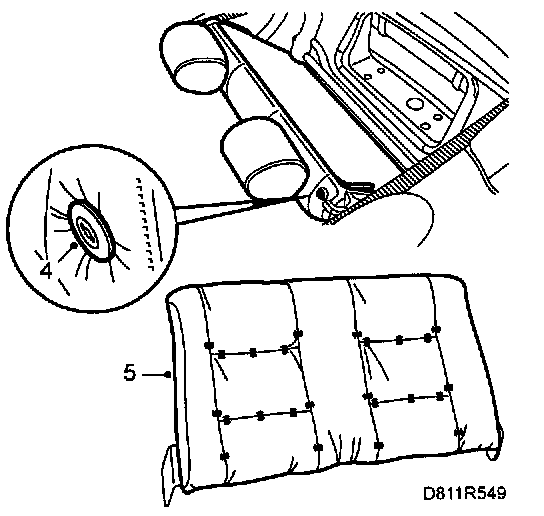

1 Lift the backrest cushion out of the car. See Backrest Cushion.

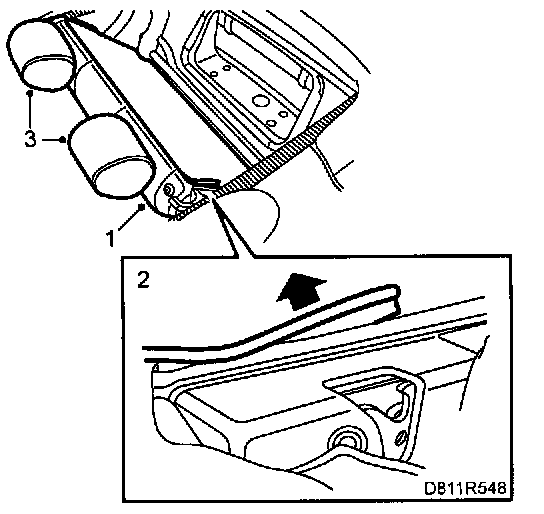

2 Remove the upholstery from the rear of the backrest cushion.
3 Remove the head restraints. See Head Restraints.
4 Loosen the upholstery by the lock.







5 Loosen the upholstery from the staples and lift away the upholstery.

Fitting

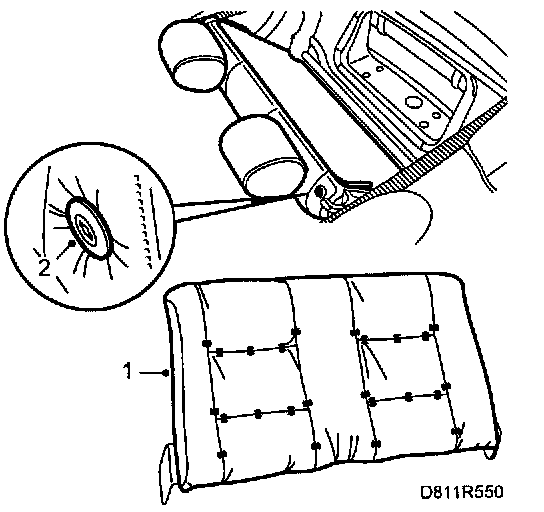

1 Fit the upholstery and hook on the staples.

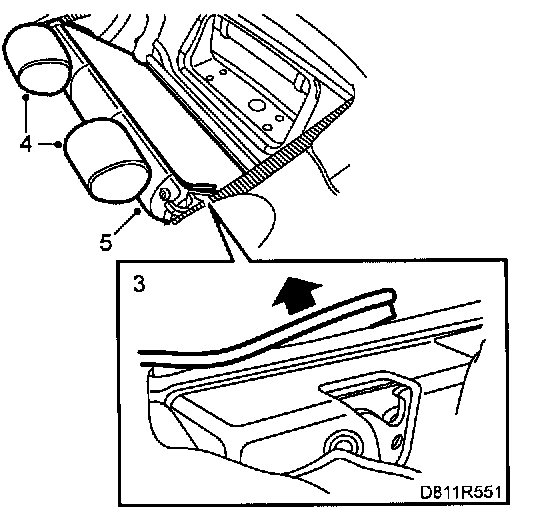

2 Fit the upholstery by the lock cylinder.
3 Refit the upholstery on the rear of the backrest cushion.







4 Refit the head restraints.
5 Fit the backrest cushion in the car. See Backrest Cushion.
