Backrest Lock Cylinder

Removing

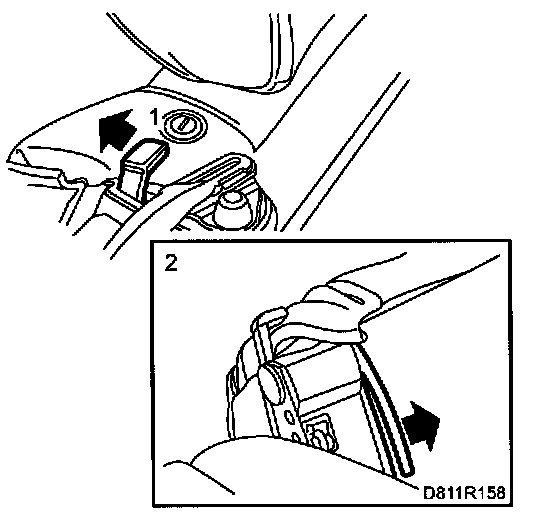

1 Fold forward the backrest.

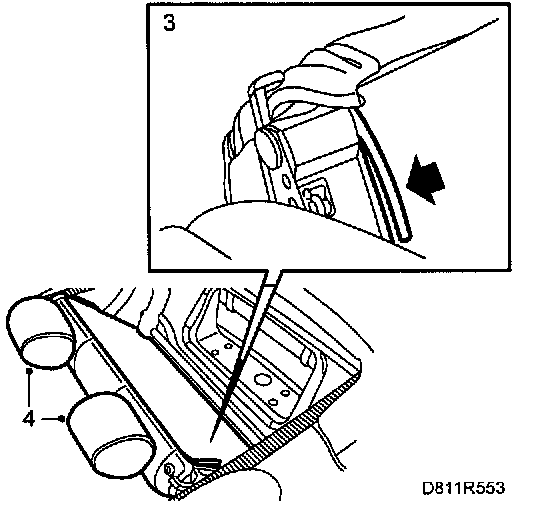

2 Loosen the upholstery retaining strip by the lock cylinder.
3 Remove the head restraint. See Head Restraint.

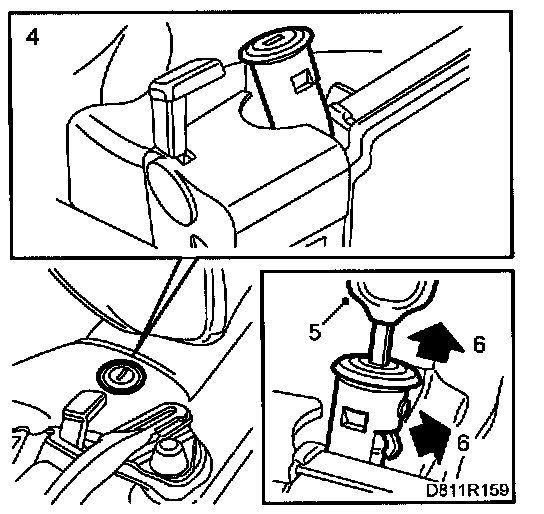

4 Move aside the upholstery to access the lock cylinder.







5 Fit the key tool in the lock cylinder.
6 Press out the plastic sleeve catches and press out the lock cylinder using a screwdriver.

Fitting

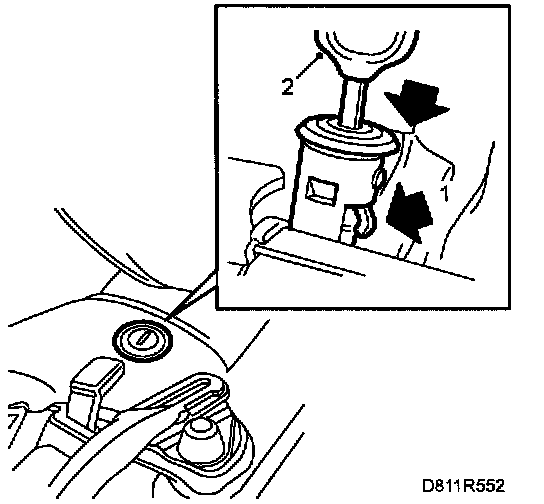

1 Fit the plastic sleeve by pressing.
2 Press in the lock cylinder with the key tool inserted.
3 Refit the upholstery and fit the upholstery retaining strip.







4 Refit the head restraint and refit the backrest.
