Boot Lid

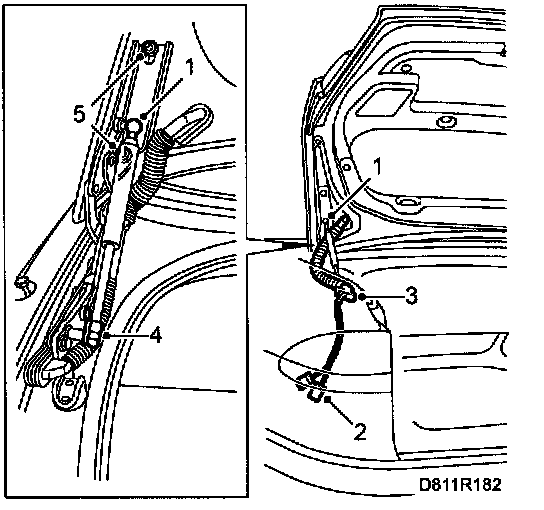

Removing
1 Remove the gas springs from the boot lid.







2 Fold down the luggage compartment upholstery by the left rear light and unplug the luggage compartment wiring harness.
3 Remove the wiring harness leadthrough from the side panel.
4 Remove the left gas spring from the ball pin by the side panel.
5 Remove the nuts securing the boot lid to the hinges and remove the boot lid with assistance from another person.

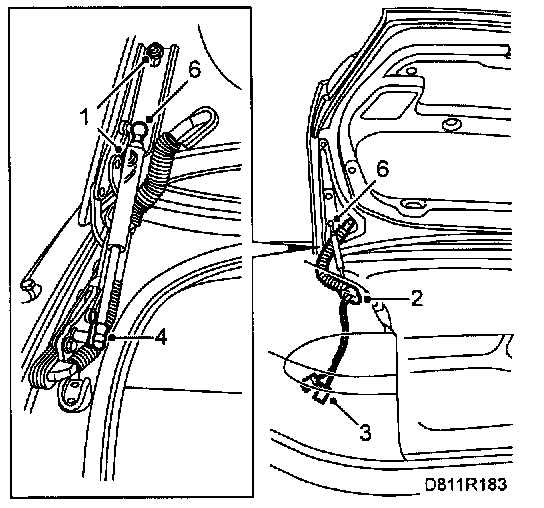

Fitting







1 Fit the boot lid and tighten the nuts.
2 Insert the wiring harness in the side panel and fit the leadthrough.
3 Plug in the connector.
4 Fit the left gas spring to the ball pin by the side panel.
5 Fit the luggage compartment upholstery.
6 Fit the gas springs to the boot lid.
