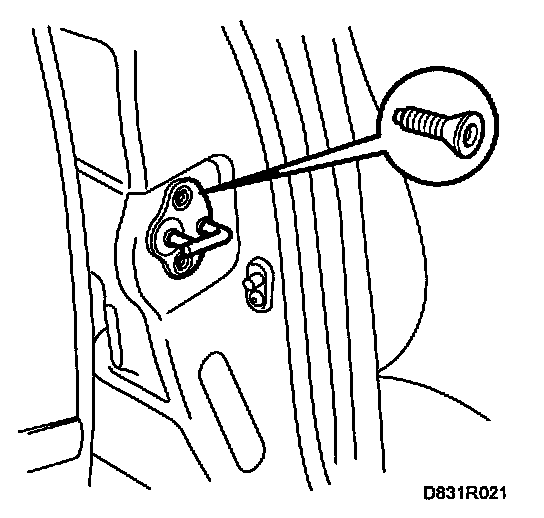

Striker Plate, Front Door









Replacement
- Remove the two retainer screws and remove the striker plate.

Adjustment
- Loosen the two retainer screws and adjust the striker plate position so that the door is not forced out of its closing position.
