Checking the Control Module Brake Light Input

Checking The Control Module Brake Light Input












- Turn the ignition switch to the ON position

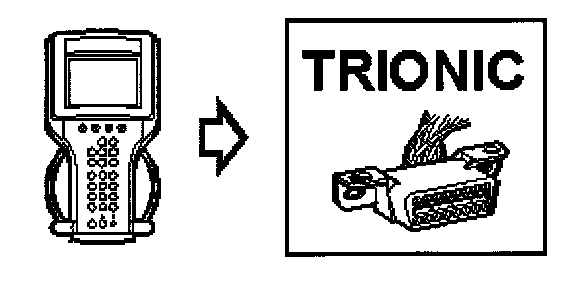

- Contact Trionic.

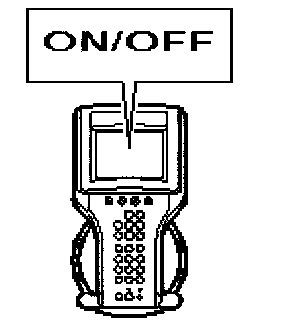

- Read value: Brake Light (Trionic).







- The reading should be ON when the brake pedal is depressed and OFF when the brake pedal is released.

Is the function correct?

NO - Changing Components

YES - Remedial Action OK
