Checking Mechanical Limp-Home

Checking Mechanical Limp-Home

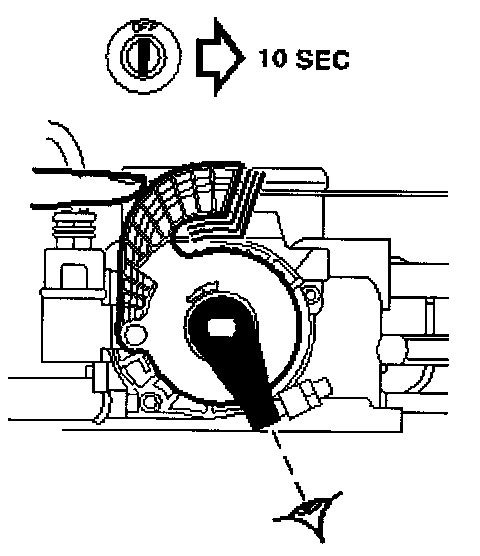

- Turn the ignition switch to the OFF position.
- Switch off the ignition and wait 10 seconds to ensure that the flap valve motor will be without current.
- Turn the pedal arm and make sure the throttle arm does not move

Is the function correct?

NO - Resetting the Limp-Home Mechanism

YES - Continue with Checking Mechanical Limp-Home







Clear the diagnostic trouble codes: Trionic
