Checking the Sensor Preheating Control Module Output

Checking The Sensor Preheating Control Module Output

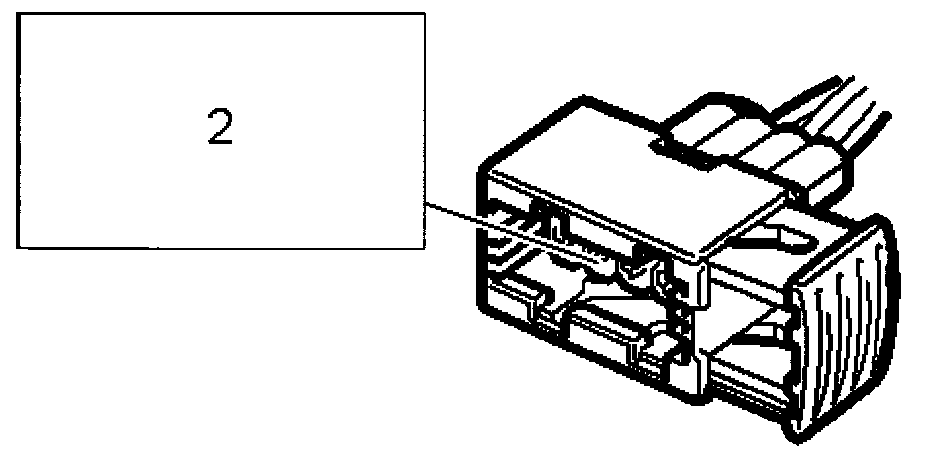

- Connect test lamp 8611 857 to B+ and pin 2 of the female connector.
- Activate:
Preheating 02S 2
On







- The test lamp should light.

Is the function correct?

NO - Rectifying the Lead - II

YES - Changing Components
