Rectifying the Lead - II

Rectifying The Lead

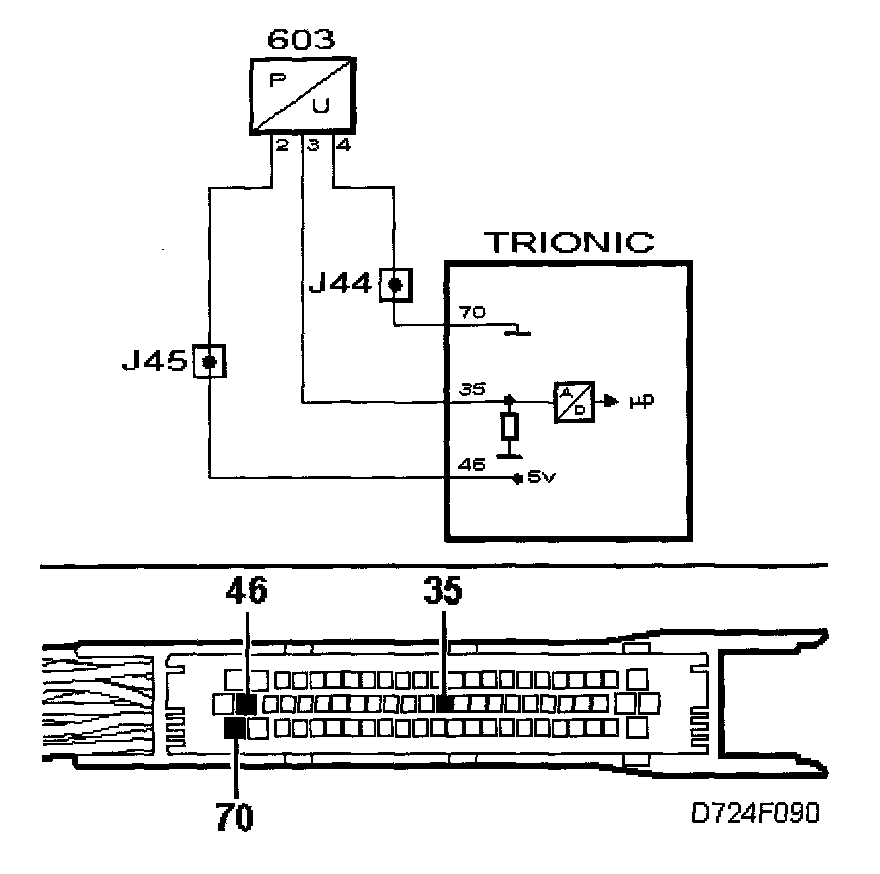

- One of the leads from pins 46 and 69 of the control module to pin 4 of the female connector is faulty. (The leads from pins 46 and 69 of the control module are connected together internally in the throttle body.)

After performing this procedure Final Check
