Implementation of Driving Cycle - I

Implementation of Driving Cycle

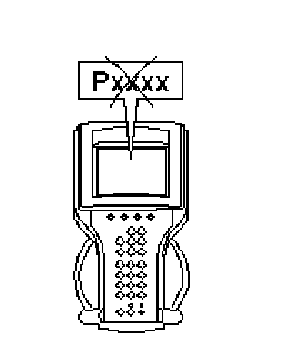

- Clear diagnostic trouble codes

Unplug the connector.
- EVAP canister purge valve (321)
- Connector test lamp 86 11 857 to the female connector.

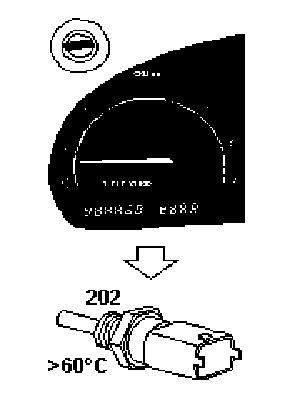

- Start the engine and let it idle until the coolant temperature exceeds 60 °C.

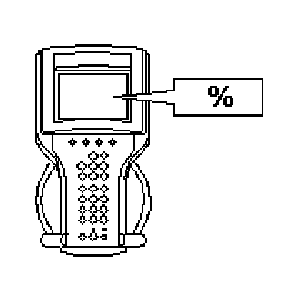

- Read value: Purge Adaptation (Trionic).







- State what the diagnostic tool shows.

-15% to +15% - Performing a Driving Cycle (Continued) - I

Other value - Fault Not Rectified - II
