Checking Control Module Input With Jumpered Circuit

Checking Control Module Input With Jumpered Circuit

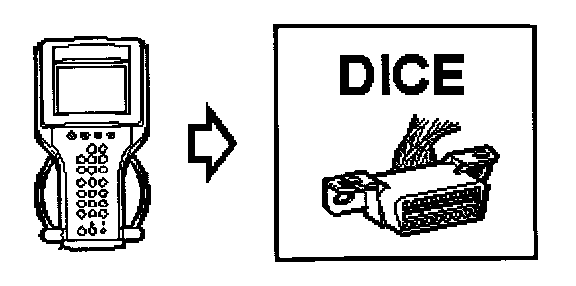

- Contact DICE.
- Connect a jumper lead between pins 2 and 3 of the female connector.







Reading: Front Intermittent Wiper Switch
The reading should be 2 s

Checking the wiring harness.
Jiggle the leads and in-line connectors at several places and in different directions to reveal intermittent breaks and short circuits in the wiring harness. Observe the multimeter, test lamp or diagnostic tool while doing this.

Is the function correct?

NO - Rectifying the Lead - II

YES - Changing Components
