Check Wiring Between Control Module & Passenger Airbag

Check the Wiring Harness Between the Control Module and the Passenger's Airbag

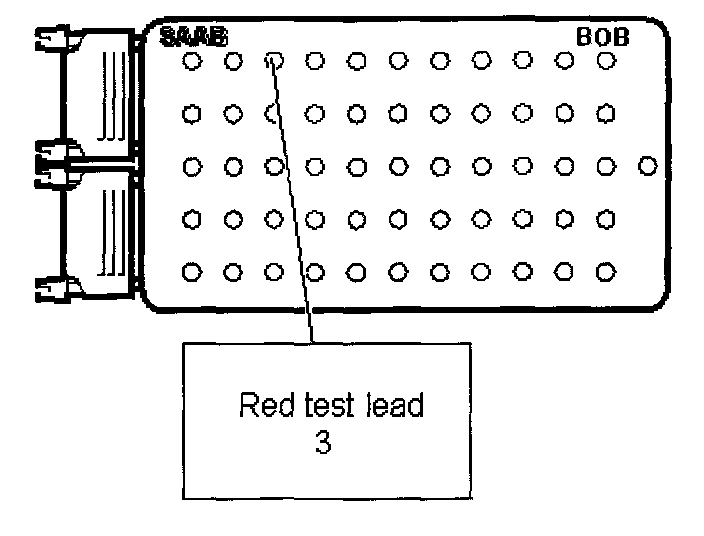

Measure the resistance. The value should be infinite.

- 3 - Control module, Airbag
- B -

Checking the wiring harness
Jiggle the leads and in-line connectors at several places and in different directions to reveal intermittent breaks and short circuits in the wiring harness. Observe the multimeter, test lamp or diagnostic tool while doing this.

Is the reading correct?

NO - Rectifying the Lead

YES - Continue with Check the Wiring Harness Between the Control Module and the Passenger's Airbag

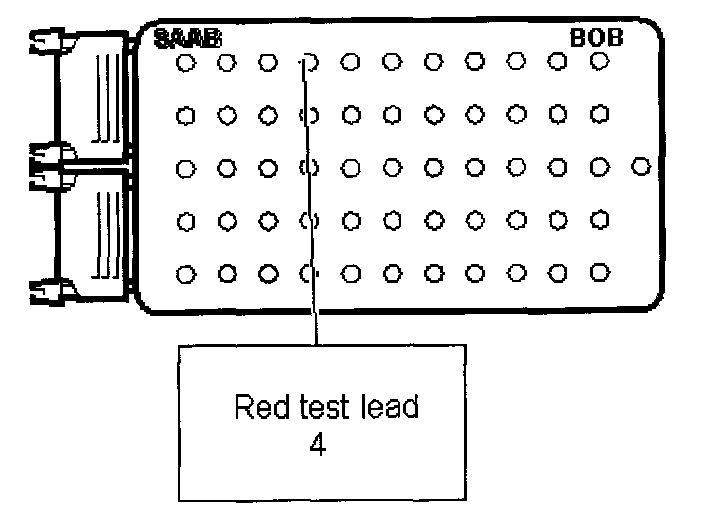

Measure the resistance. The value should be infinite.

- 4 - Control module, Airbag
- B -

Checking the wiring harness
Jiggle the leads and in-line connectors at several places and in different directions to reveal intermittent breaks and short circuits in the wiring harness. Observe the multimeter, test lamp or diagnostic tool while doing this.

Is the reading correct?

NO - Rectifying the Lead

YES - Changing Components
