Checking the Wiring Harness - II

Checking the Wiring Harness

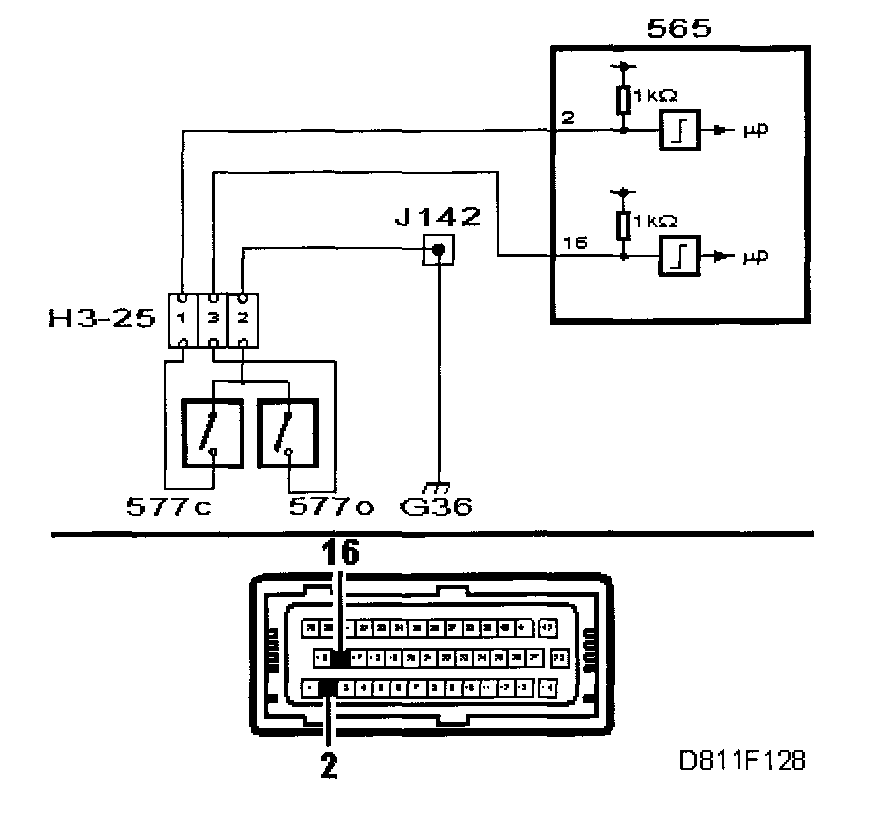

- Check the lead between pin 1 (on the top of the cylinder) and pin 2 on the control module.

Is the function correct?

NO - Continue with Checking the Wiring Harness.

YES - Changing Components - II

- Rectify the lead between pin 1 (on the top of the cylinder) and pin 2 on the control module.

After performing this procedure Final Check
