Checking the Relay's Ground Lead For an Open Circuit

Checking the Relay's Ground Lead For an Open Circuit

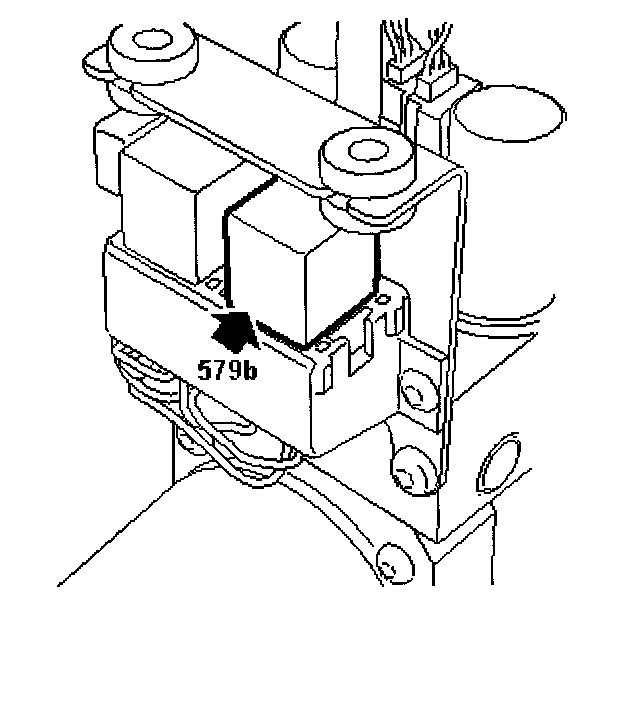

- Remove component: Relay, hydraulic pump, pull, convertible.

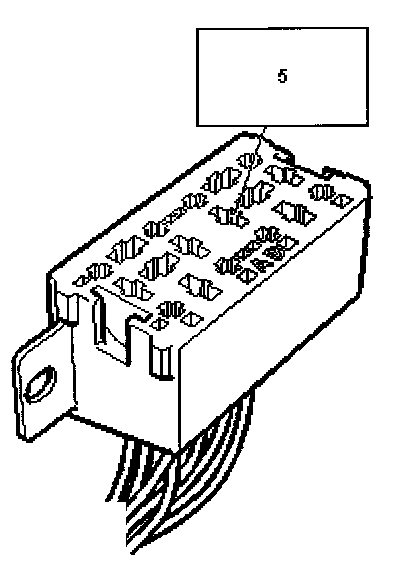

- Connect test lamp 86 11 857 to pin 5 (85) of the relay holder and B+.







- The test lamp should light.


Checking the wiring harness
Jiggle the leads and in-line connectors at several places and in different directions to reveal intermittent breaks and short circuits in the wiring harness. Observe the multimeter, test lamp or diagnostic tool while doing this.

Is the function correct?

NO - Rectifying the Lead - I

YES - Checking Lead Between Control Module and Relay
