Fault Symptom

Soft Top Valve 4. Open Circuit







Fault symptom
Soft top cannot be operated. SID shows message SOFT TOP FAILURE.

Condition
Internal malfunction in valve, open circuit in activating coil.

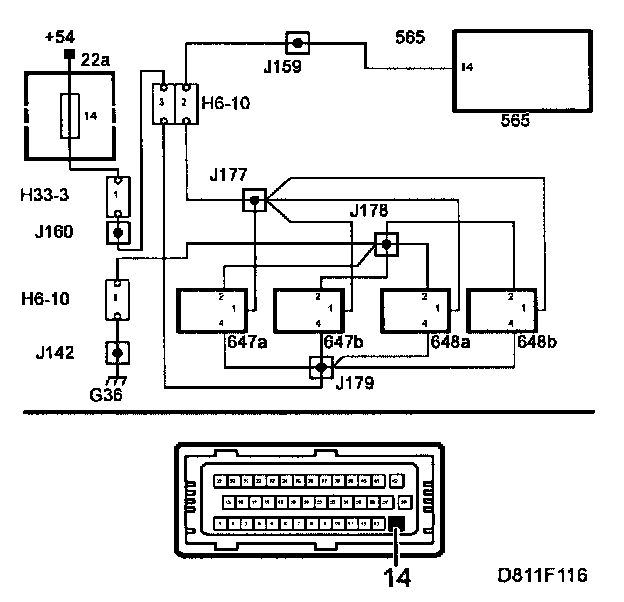

Diagnostic procedure
There is communication on the VR-bus as long as there is +54 current. This DTC is generated if there is an internal malfunction in the valve.
