Checking the Lead For an Open Circuit

Checking the Lead For an Open Circuit







Unplug the connector:
- STC (565).
- Remove component: Window lift relay, LH front.

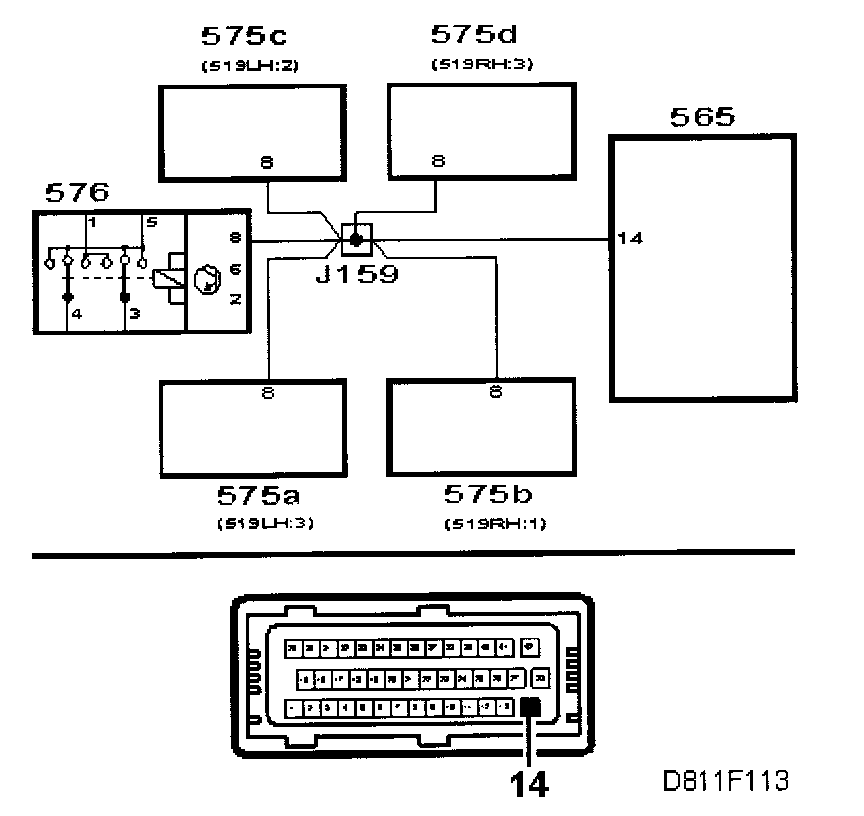

Take a resistance reading between

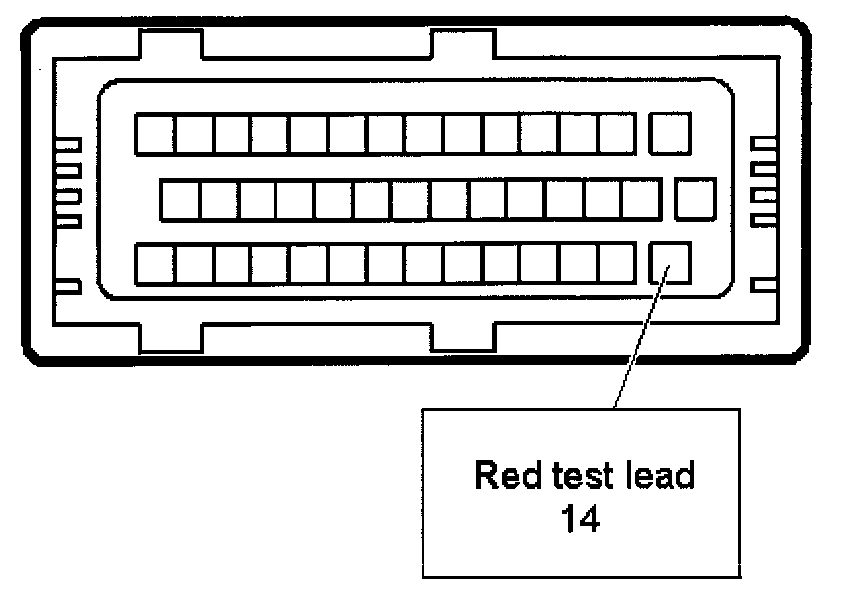

- 14 - STC

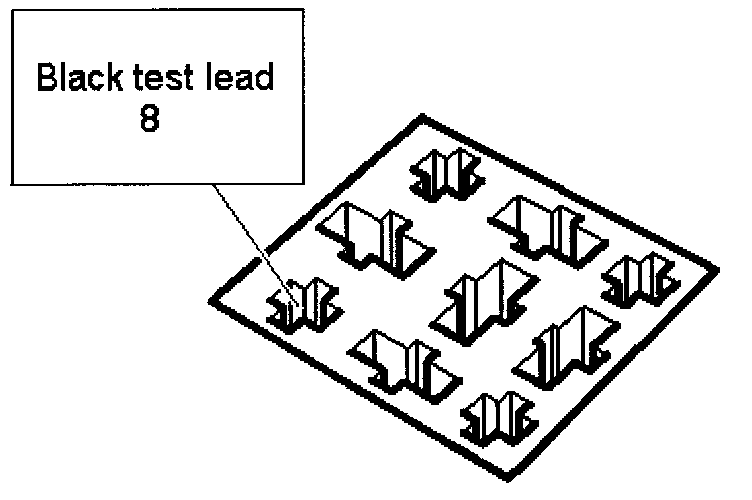

- 8 - Window lift relay, LH front

The reading should be 0 Ohm - 1 Ohm

Checking the wiring harness
Jiggle the leads and in-line connectors at several places and in different directions to reveal intermittent breaks and short circuits in the wiring harness. Observe the multimeter, test lamp or diagnostic tool while doing this.

Is the function correct?

NO - Rectifying the Lead - I

YES - Checking the Wiring Harness For Shorting to Ground
