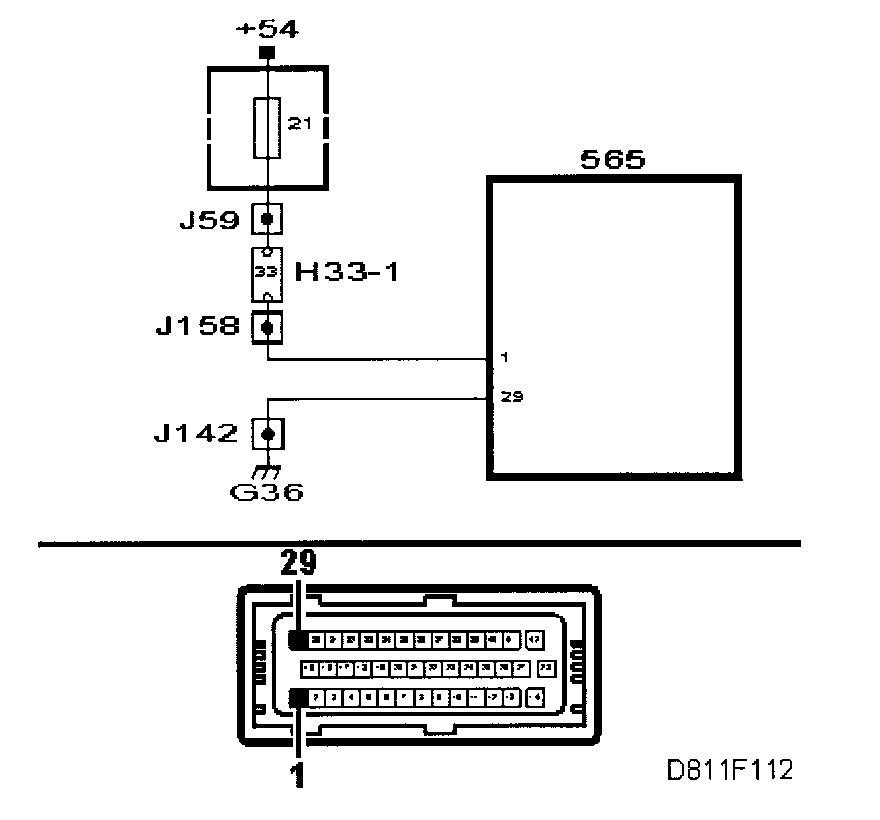

Checking the Control Module +54 Power Supply

Checking the Control Module +54 Power Supply







Turn the ignition switch to the ON position.

















Take a voltage reading.

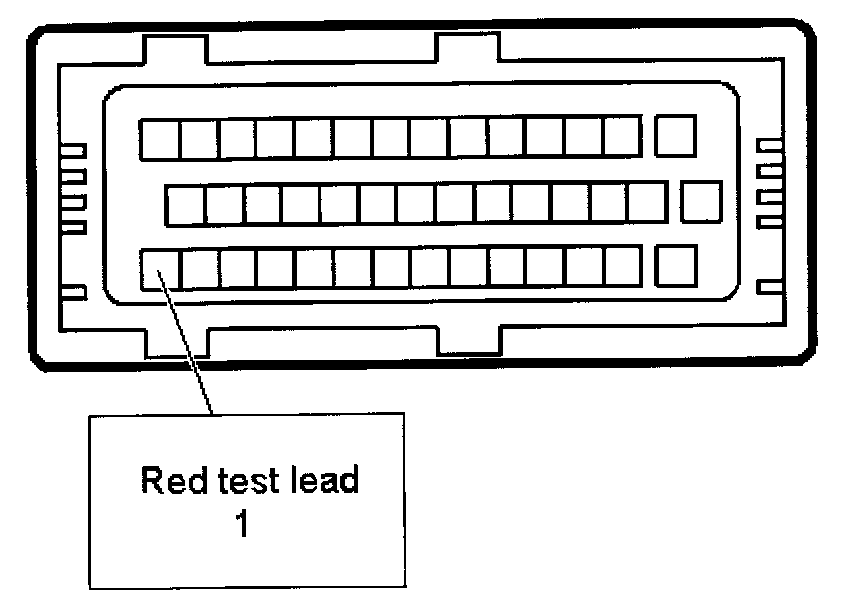

- 1 - STC
- B-

The value should be B+.

Checking the wiring harness
Jiggle the leads and in-line connectors at several places and in different directions to reveal intermittent breaks and short circuits in the wiring harness. Observe the multimeter, test lamp or diagnostic tool while doing this.

Is the function correct?

NO - Rectifying the Lead - III

YES - Final Check
