TWICE

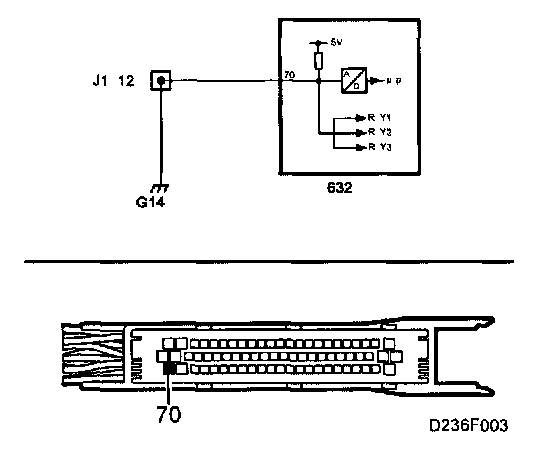

Power Ground. Missing:






Fault symptoms
Central locking does not work.

Conditions
No ground connection at pin 70.

Check wiring harness.
Jiggle the wiring harness at several points and in different directions to reveal intermittent breaks and short-circuits in the leads.
Observe the multimeter, test lamp or diagnostic instrument during the test.
