Checking the Seat-Belt Warning Lamp

Checking the Seat-Belt Warning Lamp

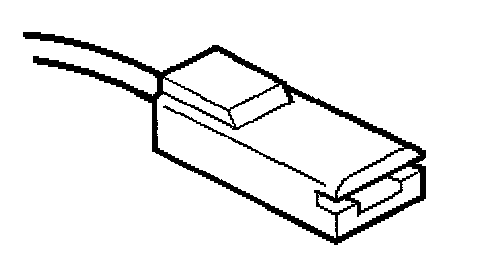

Unplug the connector:

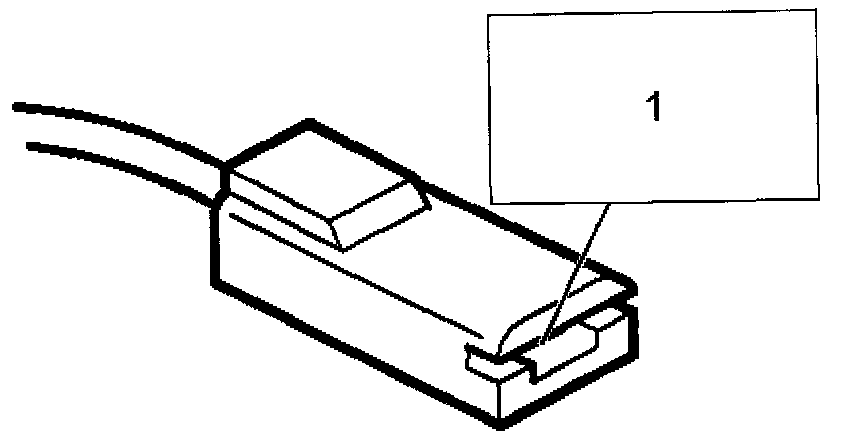

- Seat belt warning lamp connection with red/white lead (72(RD/WH))

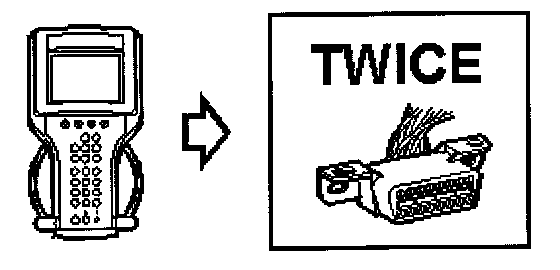

- Contact TWICE.

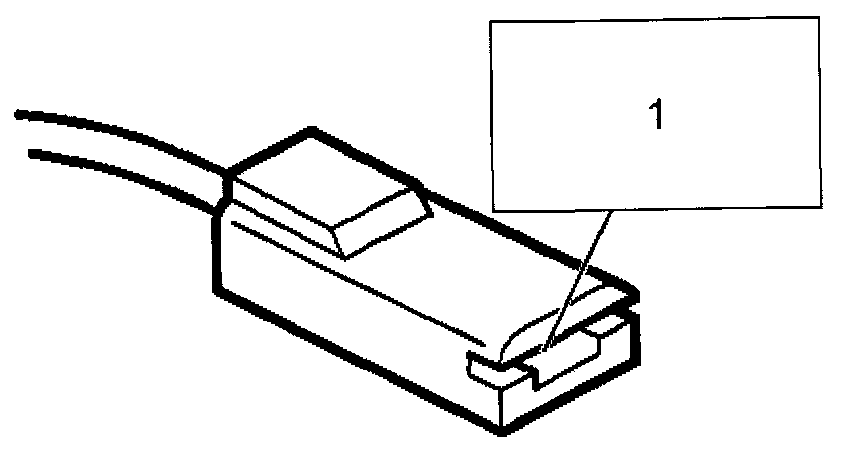

- Connect test lamp 86 11 857 between the two female connectors for the seat-belt warning lamp (red/white lead and brown/white lead)

Activate: Belt Warning Lamp (ON)

Activate: Belt Warning Lamp (OFF)







- The test lamp should light and go out when ON/OFF is activated.

Is the function correct?

NO - Rectifying the Lead - II

YES - Changing Components
