Fault Symptoms

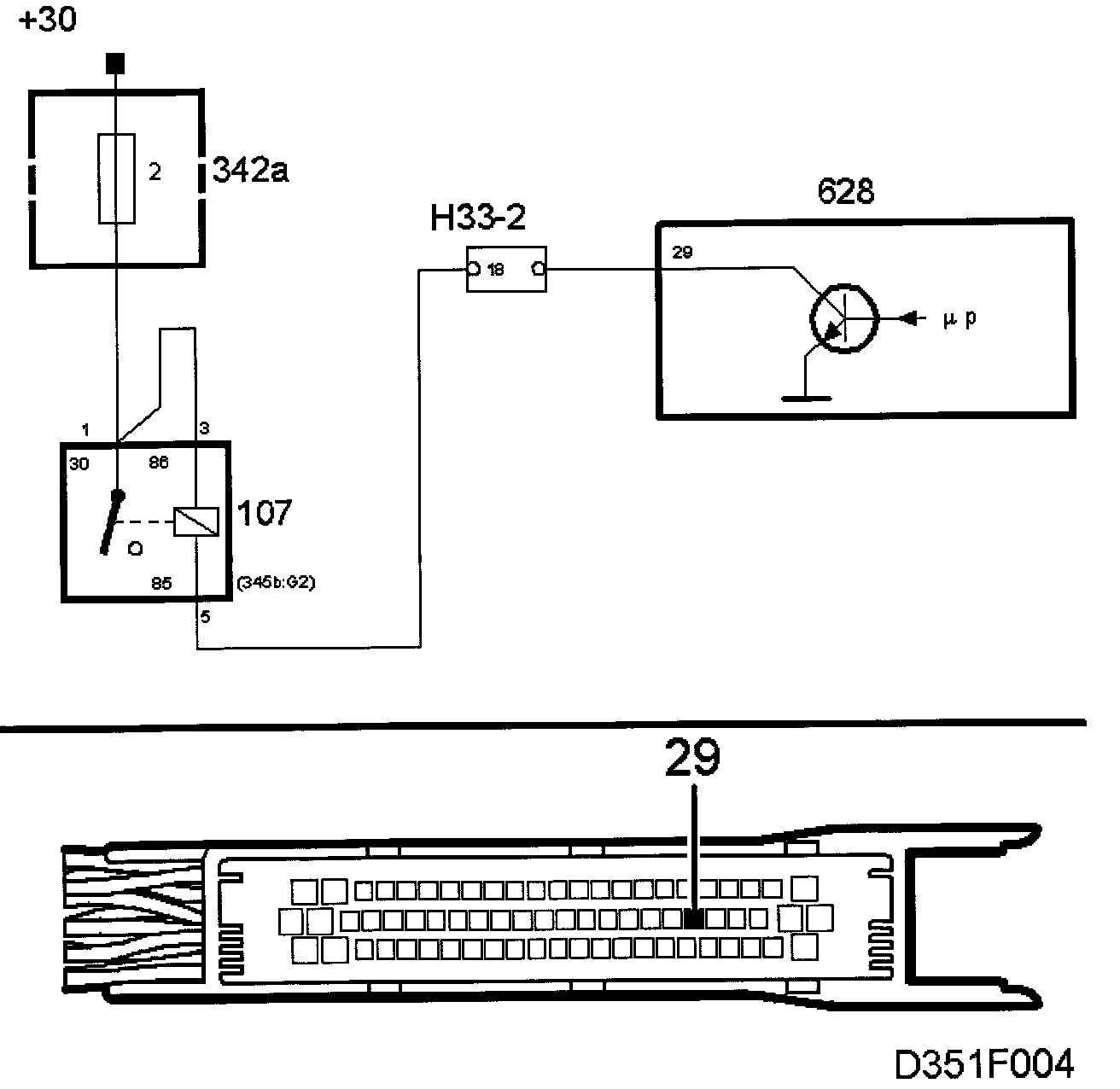

Front Fog Light Relay:

Fault symptoms
Fog light malfunction.

Condition
The control module output is monitored and a DTC generated if there is a:
- Open/short circuit to ground.
- Shorting to battery positive B+.
DTCs are not generated if the voltage is below 11 V or during diagnostic communication.

Diagnostic help
The output from DICE can be activated with the diagnostic tool.
DTCs are not generated if the voltage is below 11 V or during diagnostic communication with DICE.
