Checking Test Value, Continued

Checking Test Value, Continued







- Remove the jumper leads.







Reading: Front Intermittent Wiper Switch

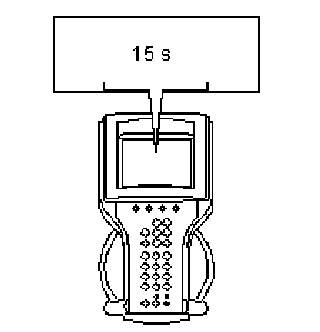

The reading should be 15 s

Checking the wiring harness.
Jiggle the leads and in-line connectors at several places and in different directions to reveal intermittent breaks and short circuits in the wiring harness. Observe the multimeter, test lamp or diagnostic tool while doing this.

Is the function correct?

NO - Rectifying the Lead - III

YES - Changing Components
