Checking the Rear Window Wiper Switch, Continued

Checking the Rear Window Wiper Switch, Continued

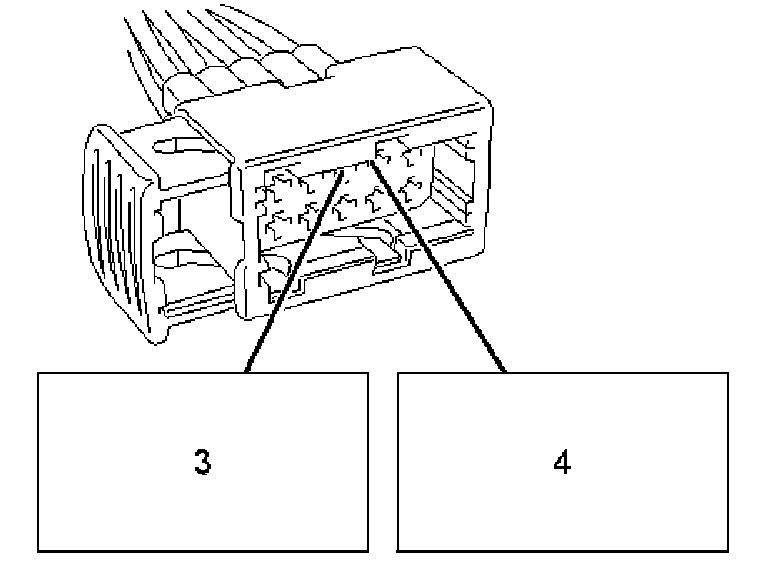

Unplug the connector:
- Switch, rear window wiper (61a)
- Connect a jumper lead between pin 3 and pin 4 of the female connector.

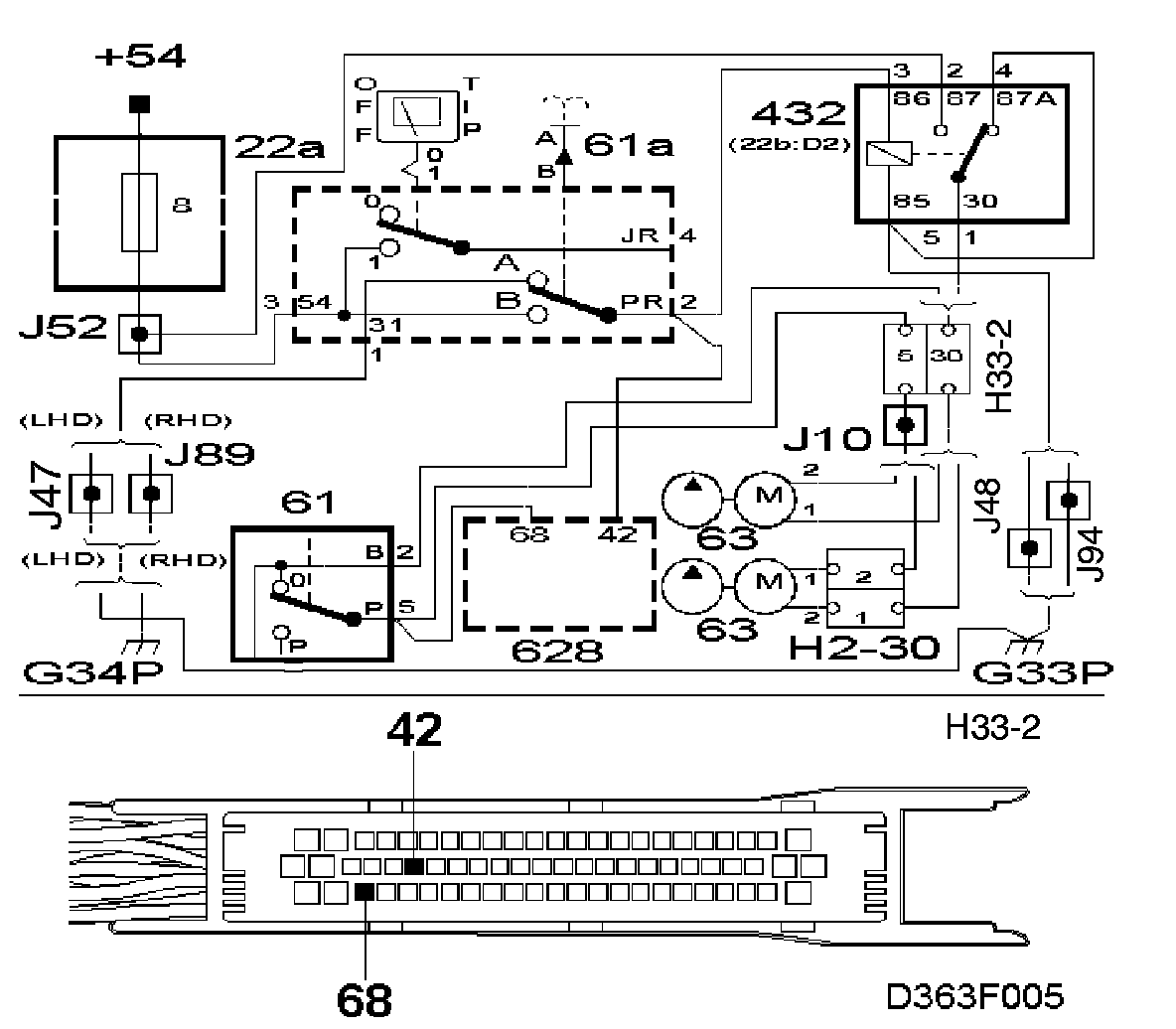

Test value: Rear Window Wiper Relay (DICE)
The reading should be: ON

Checking the wiring harness.
Jiggle the leads and in-line connectors at several places and in different directions to reveal intermittent breaks and short, circuits in the wiring harness. Observe the multimeter, test lamp or diagnostic tool while doing this.

Is the function correct?

NO - Rectifying the Lead - I

YES - Changing Components - II
