Checking the Rear Window Washer Switch

Checking the Rear Window Washer Switch

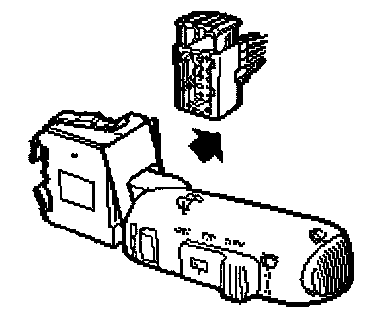

Unplug the connector:
- Switch, rear window wiper (61a)

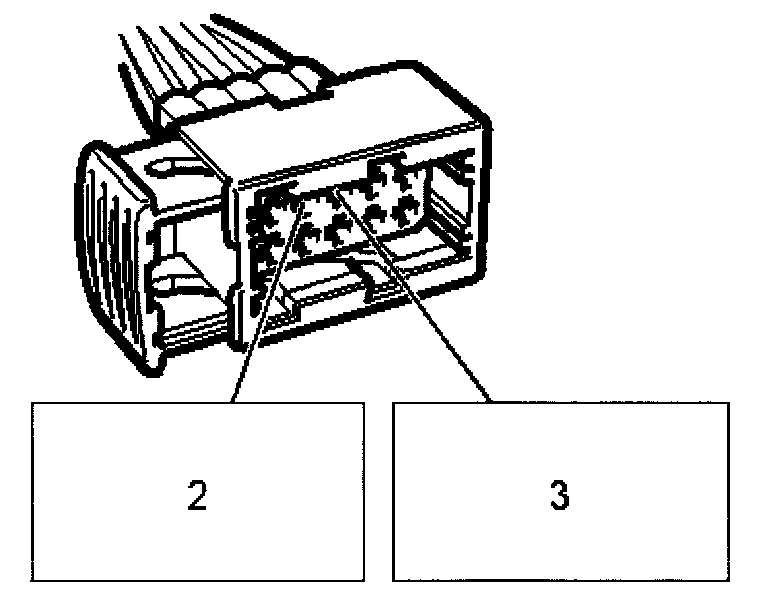

- Connect a jumper lead between pins 2 and 3 of the female connector.












- Turn the ignition switch to the ON position.

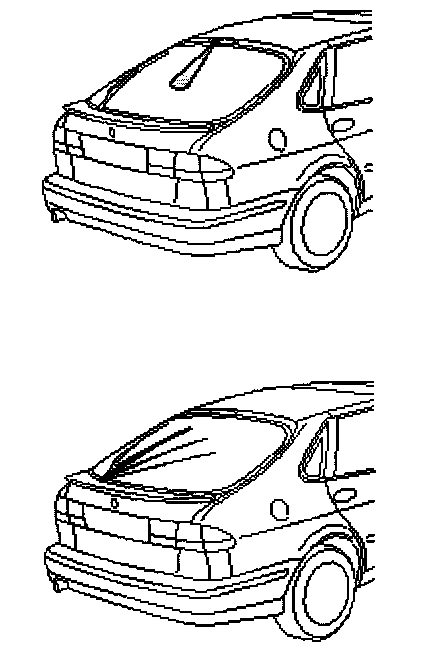

- The rear window wiper and the washer fluid pump should start working.

Is the function correct?

NO - Checking the Relay Power Supply

YES - Changing Components - I
