Home >> Saab >> 2000 >> 9-3 Hatchback (9400) L4-2.0L Turbo (B205) >> Repair and Diagnosis >> Windows and Glass >> Windows >> Diagrams >> Electrical Diagrams

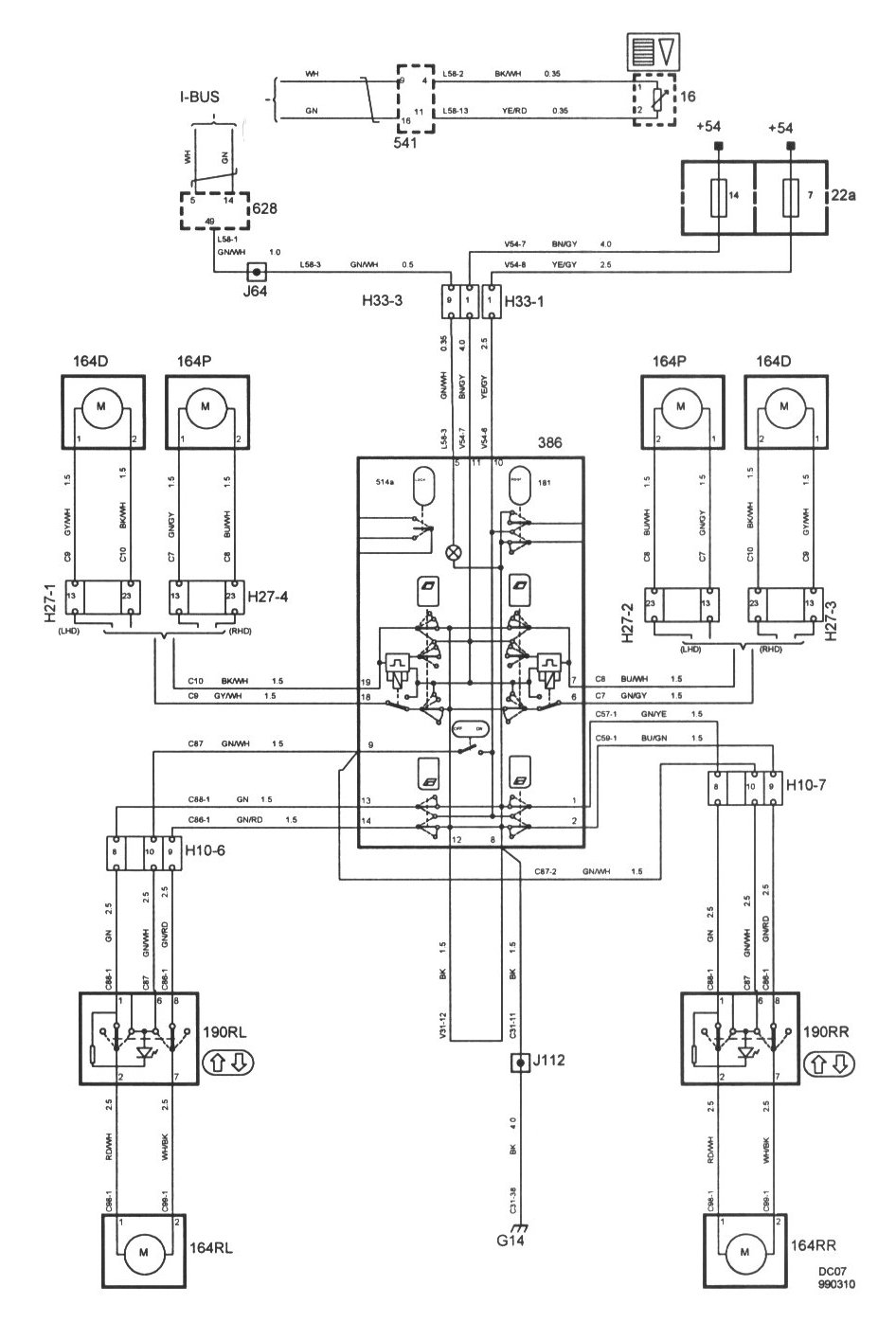

Electrical Diagrams

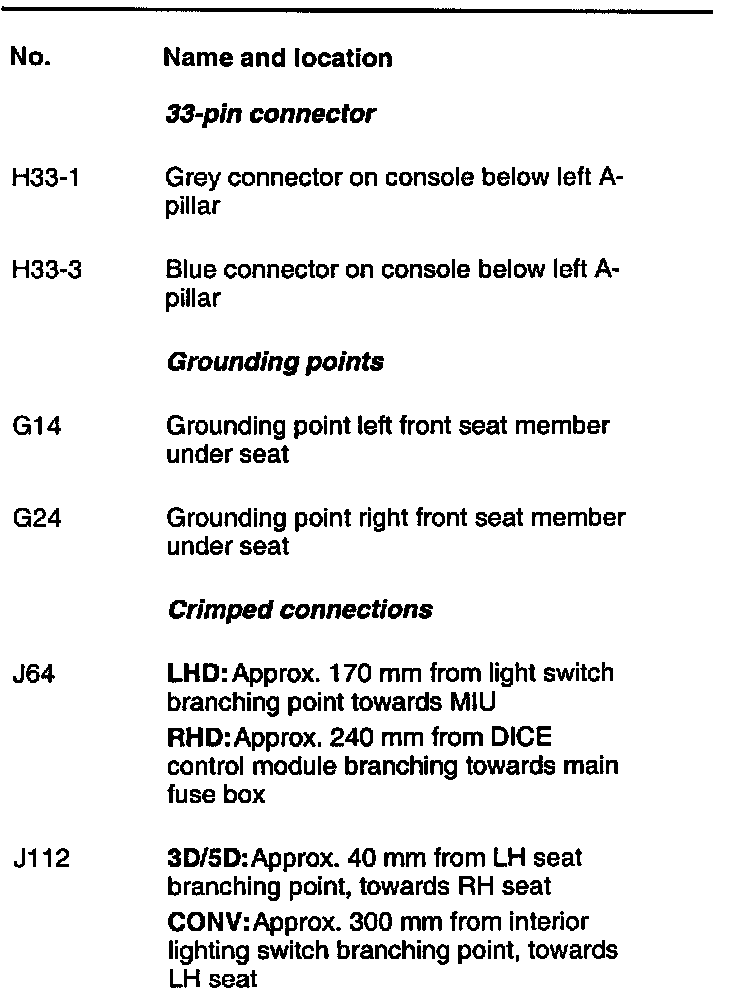

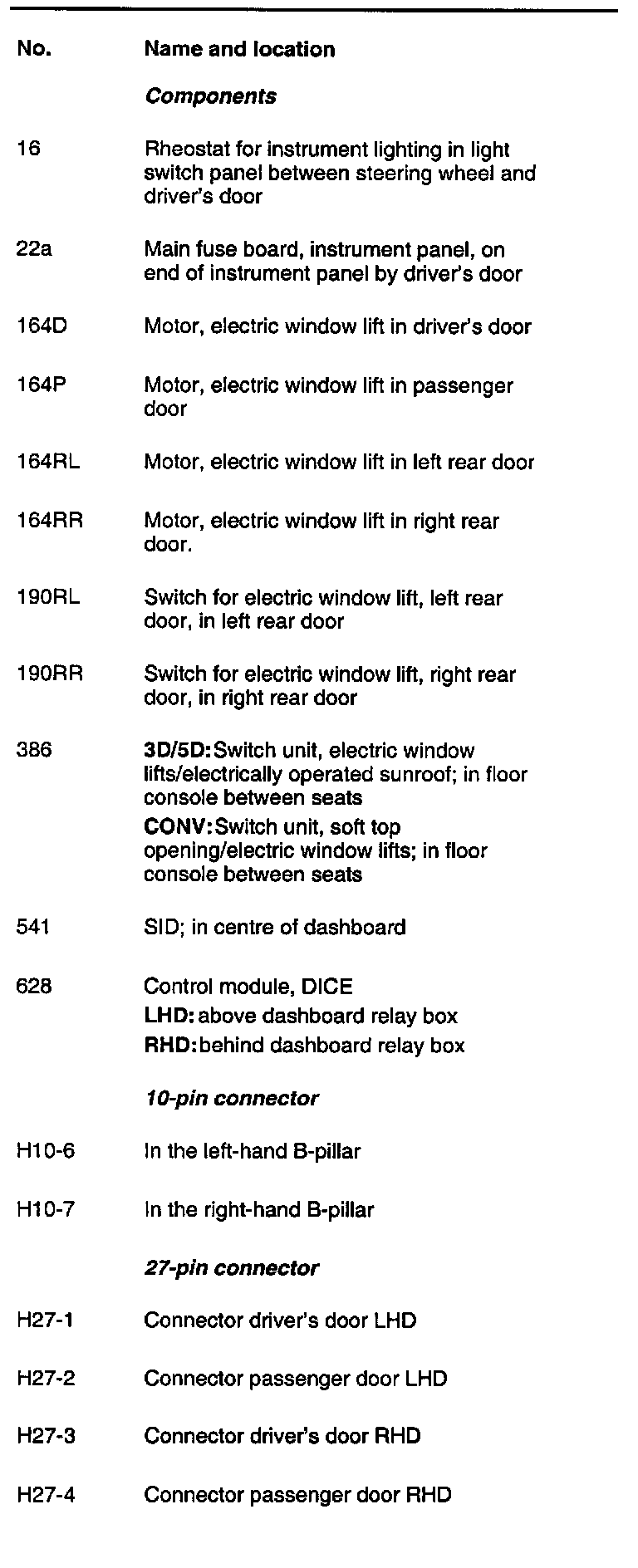

List of components


Part 1:






Part 2:
