Checking the Power Supply (+54 Circuit)

Checking the Power Supply (+54 Circuit)

















- Turn the ignition switch to the ON position.

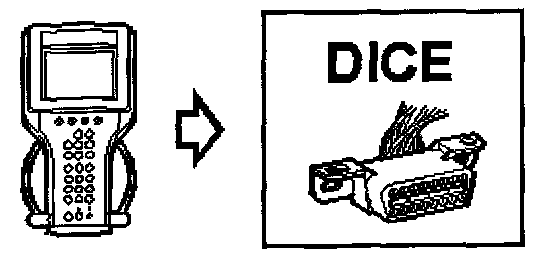

- Contact DICE.

Test value: Ignition +54 (DICE)

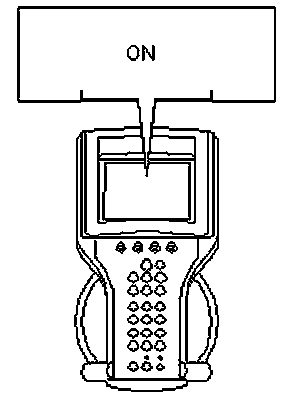

The reading should be: ON

Checking the Wiring Harness
Jiggle the leads and in-line connectors at several places and in different directions to several intermittent breaks and short circuits in the wiring harness. Observe the multimeter, test lamp or diagnostic tool while doing this.

Is the function correct?

NO - Rectifying the Lead - I

YES - Continue with Checking the Power Supply (+54 Circuit)












- Turn the ignition switch to the OFF position.

Test value: Ignition +54 (DICE)

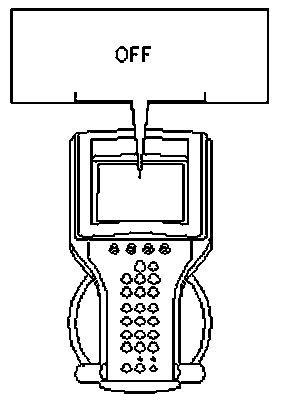

The reading should be: OFF

Checking the Wiring Harness
Jiggle the leads and in-line connectors at several places and in different directions to several intermittent breaks and short circuits in the wiring harness. Observe the multimeter, test lamp or diagnostic tool while doing this.

Is the function correct?

NO - Rectifying the Lead - II

YES - Functionality is OK.
