Drive Shaft Seal, Left-Hand

In-car removal
1. Remove the drive shaft on the left side, refer to Drive Axles, Bearings and Joints.





2. Remove the seal with puller 87 92 350 and puller 87 91 683.

In-car fitting

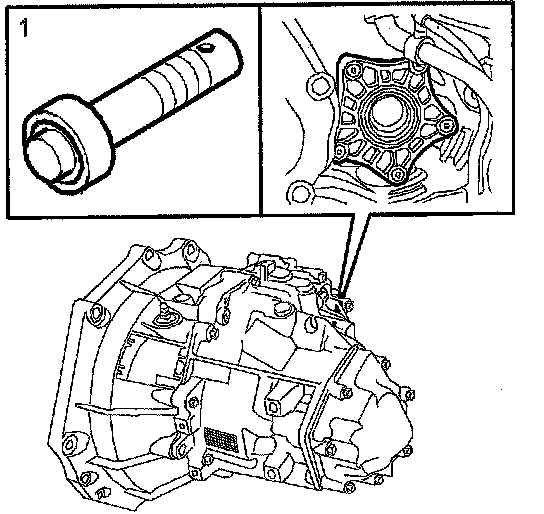

1. Tap on the new seal with drift 87 92 657.
2. Fit the drive shafts.
