Bearing, Output Shaft

To remove

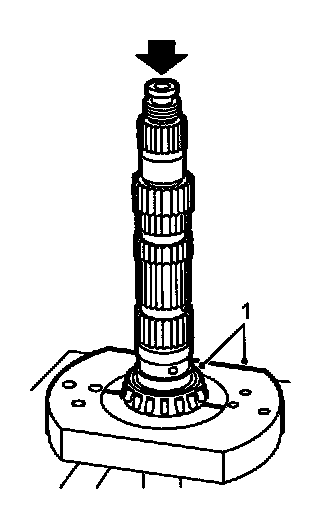

1. Press off the bearing with puller ring 87 92 160, puller ring 87 92 004, puller ring 87 92 178 and fixture 87 90 636

To fit

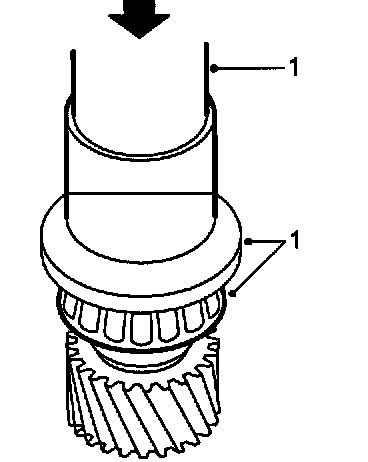

1. Press on a new bearing until it stops with sleeve 87 92 203 and 87 91 204
