Bearing Race - Output Shaft In Gearcase

To remove

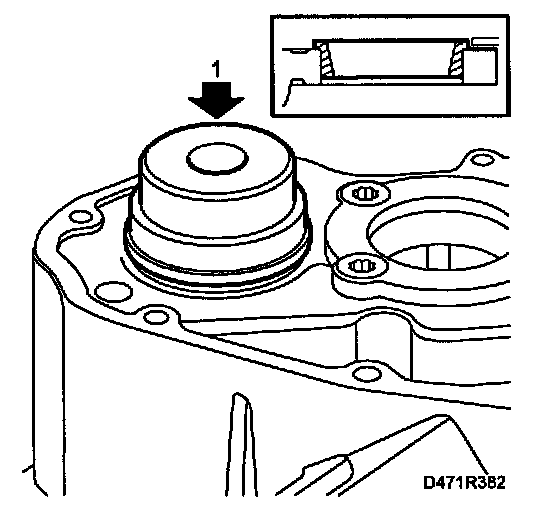

1. Mount the gearcase in a press.





2. Press out the bearing race with sleeve 87 91 311

To fit

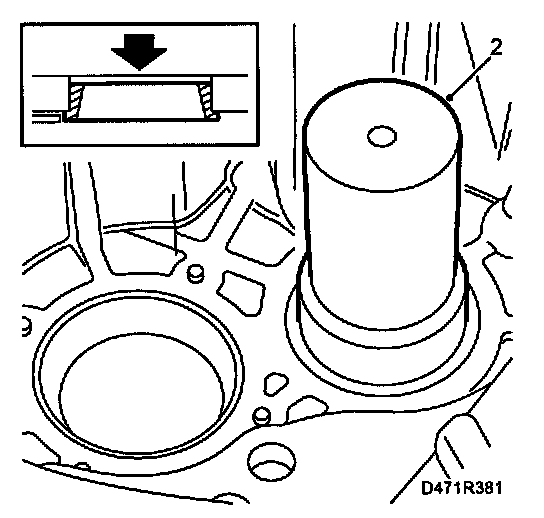

1. Turn the gearcase and fit the bearing race with a plastic hammer. Press in the new bearing race until it stops with drift 83 90 312. Use tool 87 91 188 as support.
