Manual Transmission/Transaxle: Application and ID

General

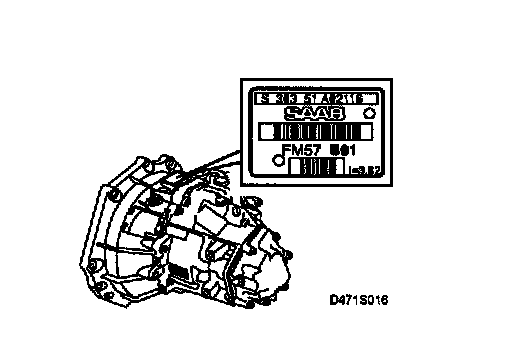

Type designation for manual gearboxes is divided into 3 groups of characters as in the following example:

FM57 B01 A12345

The three character groups are separated by spaces and contain different information about the gearbox as specified below.

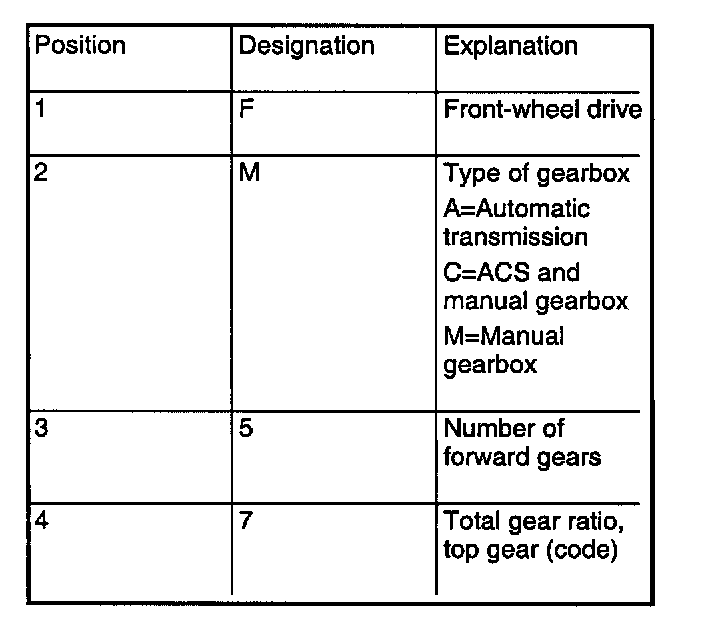

First group FM57:

Part 1 Of 2:

Part 2 Of 2:

Second group B01:






Third group A12345:
Manual gearboxes have a 6-character designation which starts with a letter according to which line the gearbox was fitted on. Each number series consists of 5 digits.
