With Scan Tool
1. Checking Brake-Lights FunctionalityCheck that the brake lights come on when the pedal is depressed.
Is the function correct?
NO
Go to step 2
YES
Go to step 5
2. Checking The Fuse
Check fuse 12.
Is the function correct?
NO
Go to step 3
YES
Go to step 4
3. Checking The Fuse
Replace the fuse.
When procedure is complete
Go to step 12
4. Rectifying The Lead
Repair or replace the lead between the fuse 12 in the dashboard main fuse board and the brake light switch pin 3
5. Checking The Power Supply

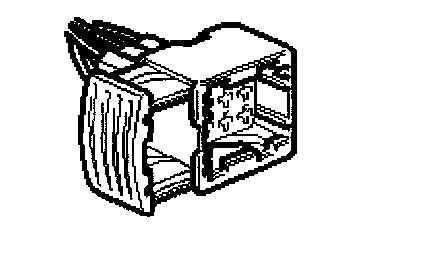

Unplug the connector H6-8
Go to step 6
6. Checking The Power Supply
Part 1 Of 2:
Part 2 Of 2:

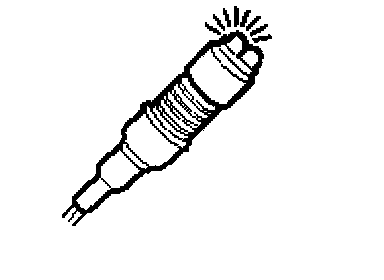

Connect test lamp 86 11 857 to pin 5 of the female connector and a good grounding point.
Go to step 7
7. Checking The Power Supply

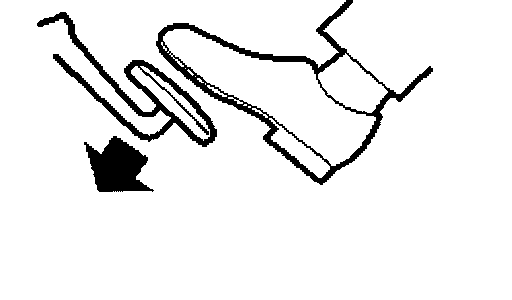

Depress the brake pedal.
The test lamp should light.
Is the function correct?
NO
Go to step 8
YES
Go to step
8. Rectifying The Lead
Repair or replace the lead between connector H6-8, pin 5 and crimp j75.
When repair is complete
Go to step 12
9. Checking The Ground Lead
Part 1 Of 2:
Part 2 Of 2:

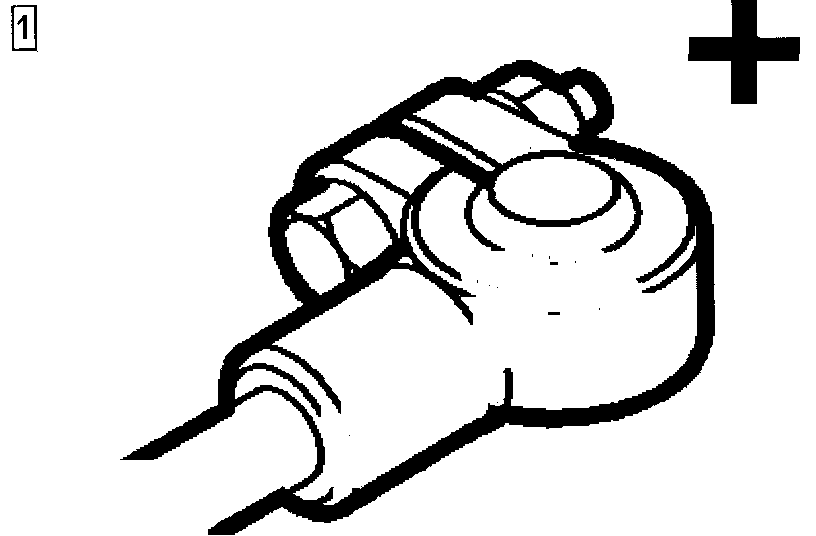

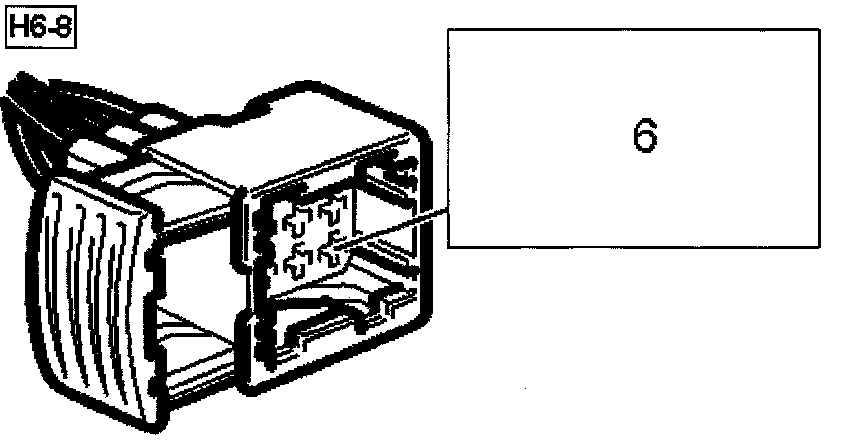

Connect a test lamp to battery positive (B+) and pin 6 of the female connector.
The test lamp should light.
Checking the wiring harness.
Jiggle the leads and in-line connectors at several places and indifferent directions to reveal intermittent breaks and short circuits in the wiring harness. Observe the multimeter, test lamp or diagnostic tool while doing this.
Is the function correct?
NO
Go to step 11
YES
Go to step 10
10. Changing Components

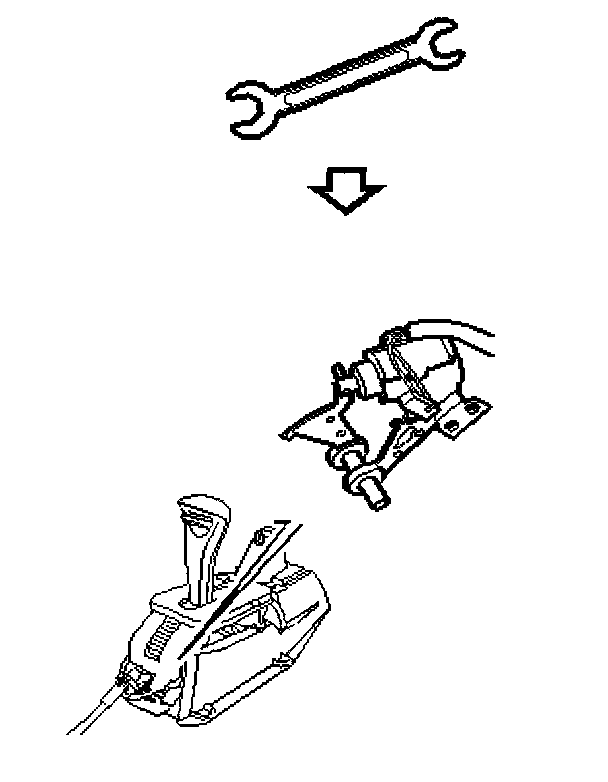

Change Microswitch gear selector lever
When repair is complete
Go to step 12
11. Rectifying The Lead
When repair is complete
Go to step 12

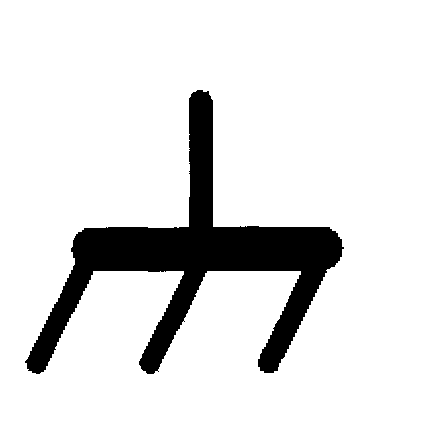

Repair or replace the lead between connector H6-8, pin 6 and grounding point G34P
12. Final Check
Clear the diagnostic trouble codes in all systems.
Carry out a functionality test.
Is the function correct?
NO
Go to step
YES
Go to step
13. Final Check
The steps taken to rectify the fault were correct.
The diagnosis procedure is complete
14. Final Check
The diagnosis procedure for this symptom is complete
Refer to Transmission Control Systems, Testing and Inspection, Procedures for Before Changing A Control Module.
