With Scan Tool

1. Checking The Adjustment Of The Gear Selector Position Sensor

Check the adjustment of the gear selector position sensor

2. Checking The Adjustment Of The Gear Selector Position Sensor

Adjust gear selector position sensor, refer to Powertrain Management, Computers and Control Systems.

When procedure is complete
Go to step 4





3. Changing Components
Change Gear selector position sensor

When repair is complete
Go to step 4

4. Final Check

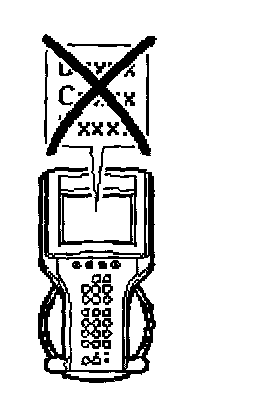

Clear the diagnostic trouble codes in all systems.

Carry out a functionality test.

Is the function correct?

NO
Go to step 6

YES
Go to step 5

5. Final Check

The steps taken to rectify the fault were correct.
The diagnosis procedures are complete

6. Final Check

Diagnosis of this fault symptom is complete
Refer to Transmission Control Systems, Testing and Inspection, Procedures for Before Changing A Control Module.
