Home >> Saab >> 2000 >> 9-3 Hatchback (9400) L4-2.0L Turbo (B205) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Locations >> Splice Locations

Splice Locations

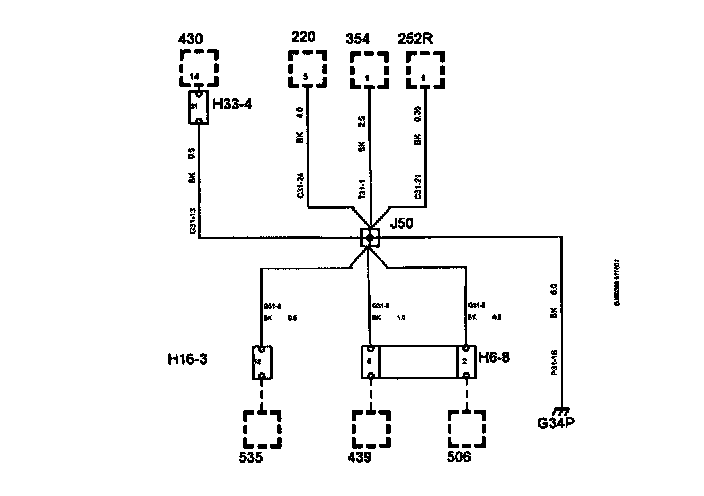

J50

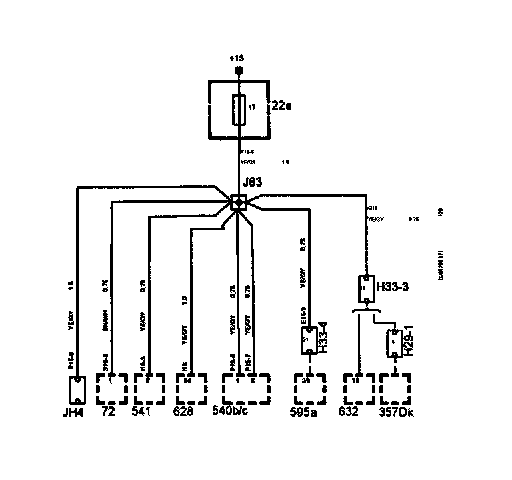

J63

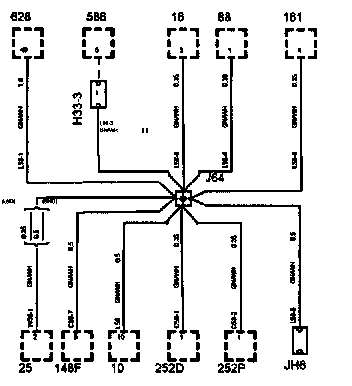

J64

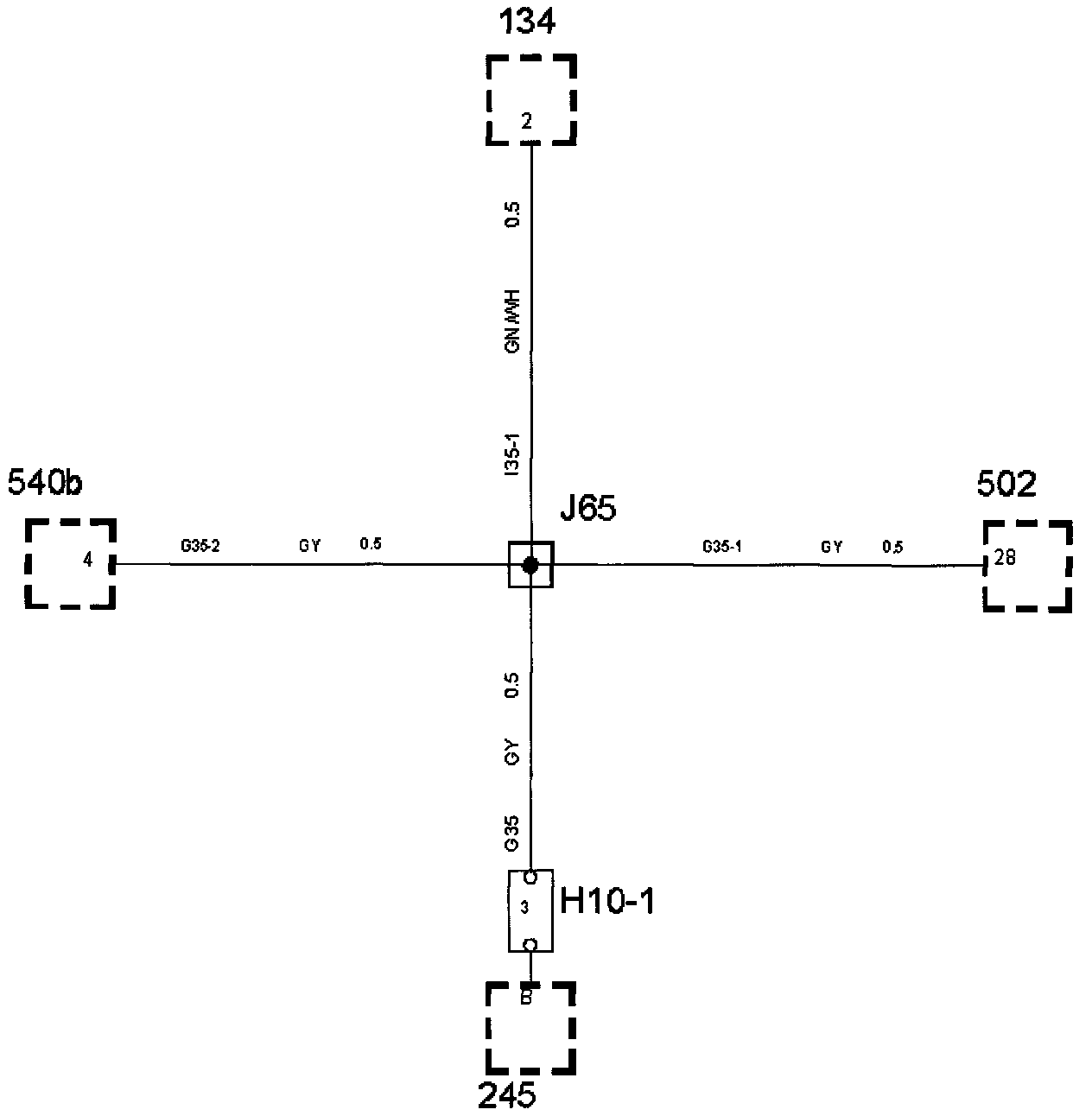

J65





J69

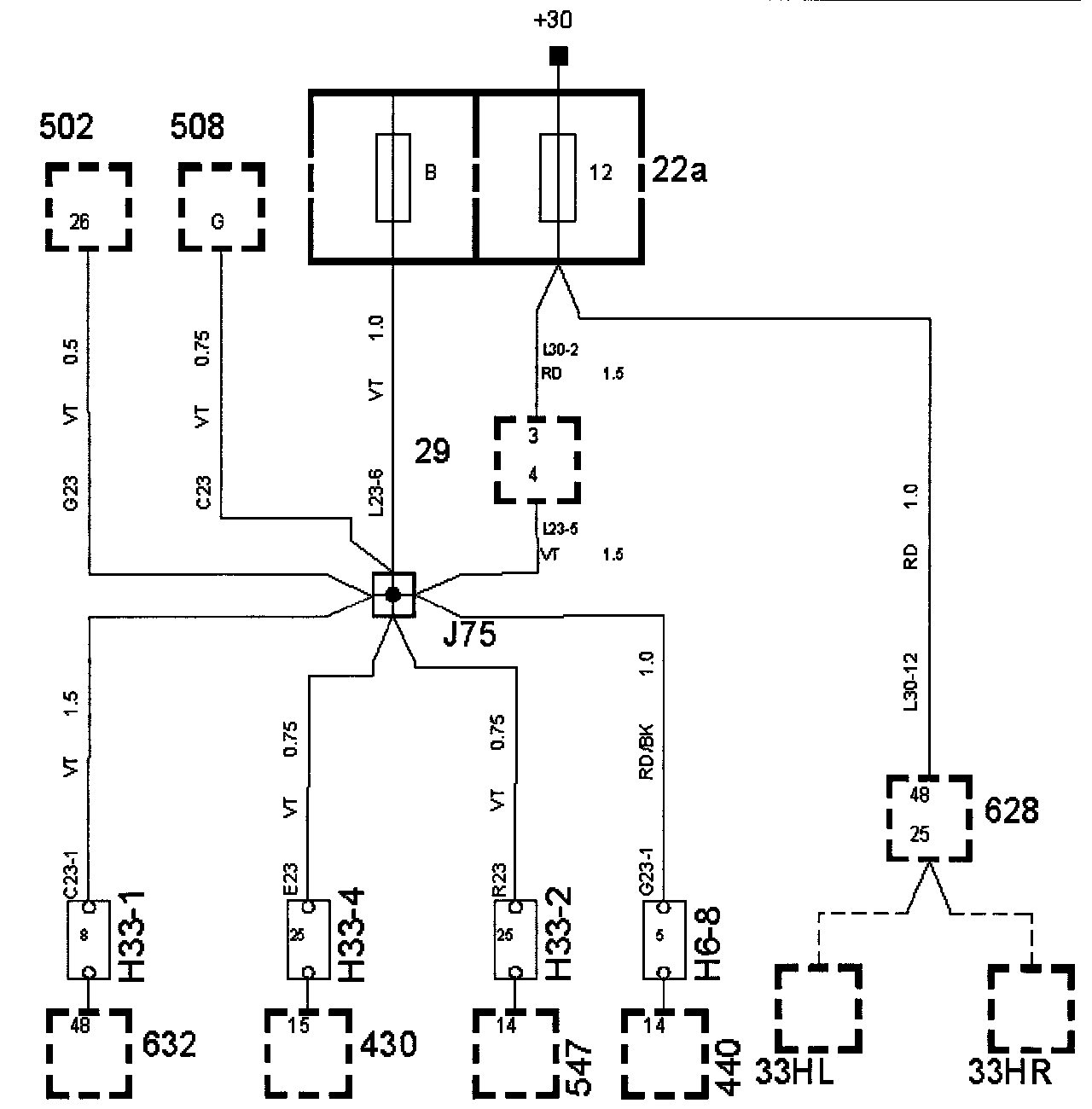

J75

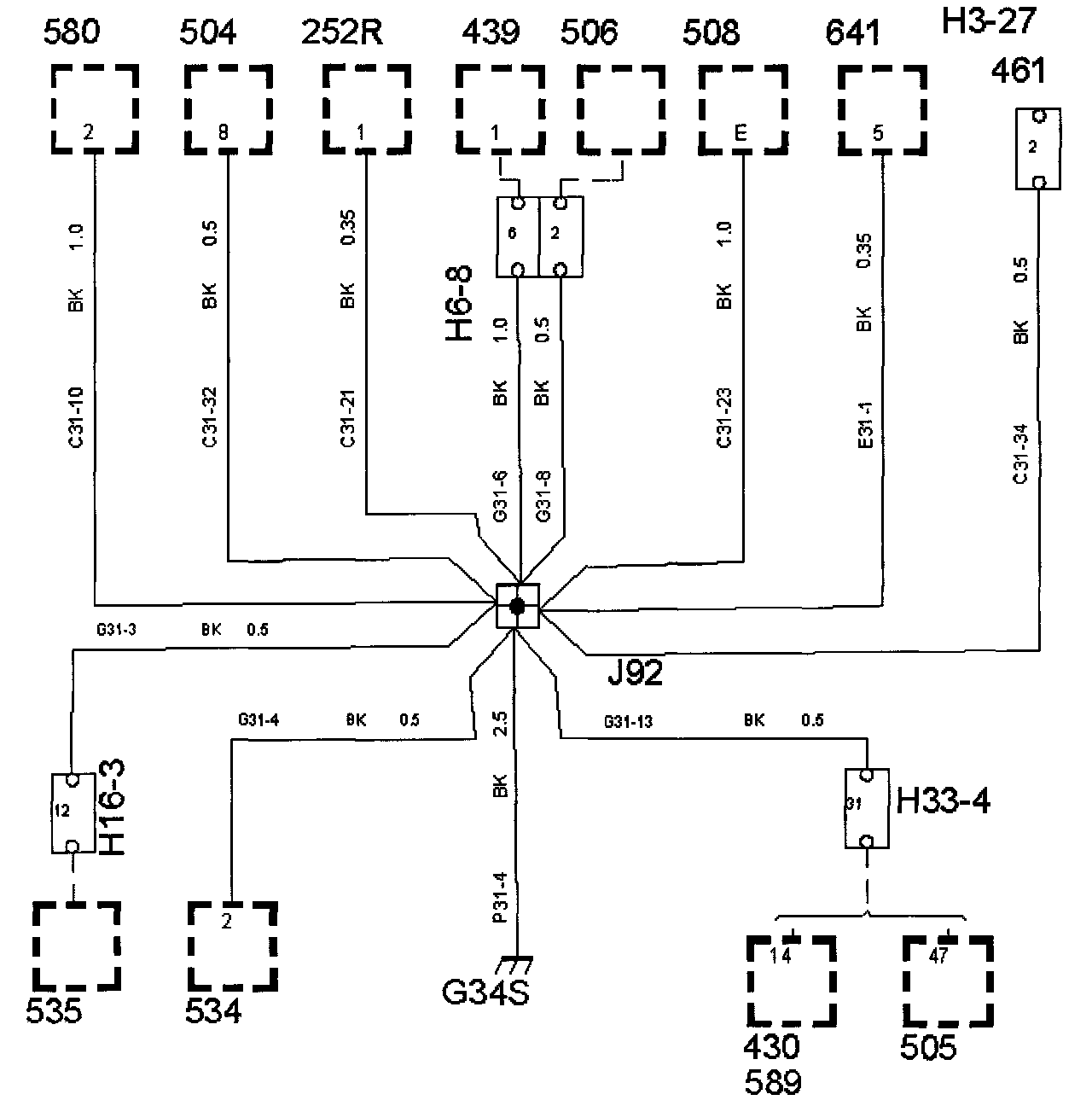

J92

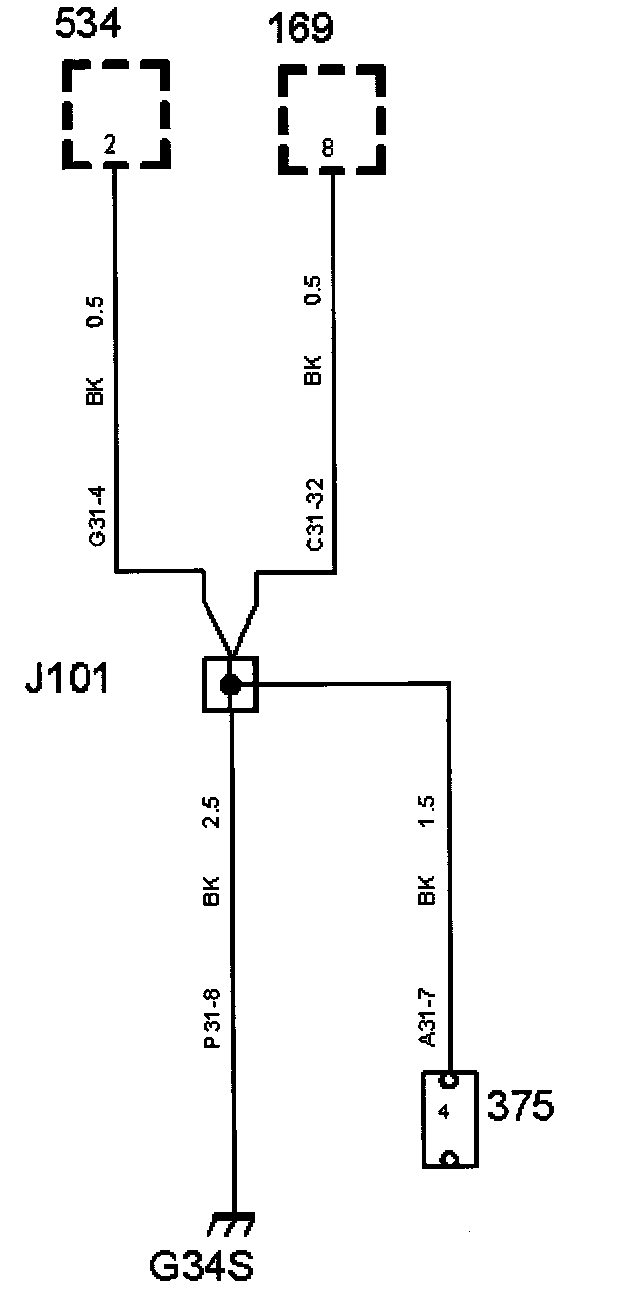

J101

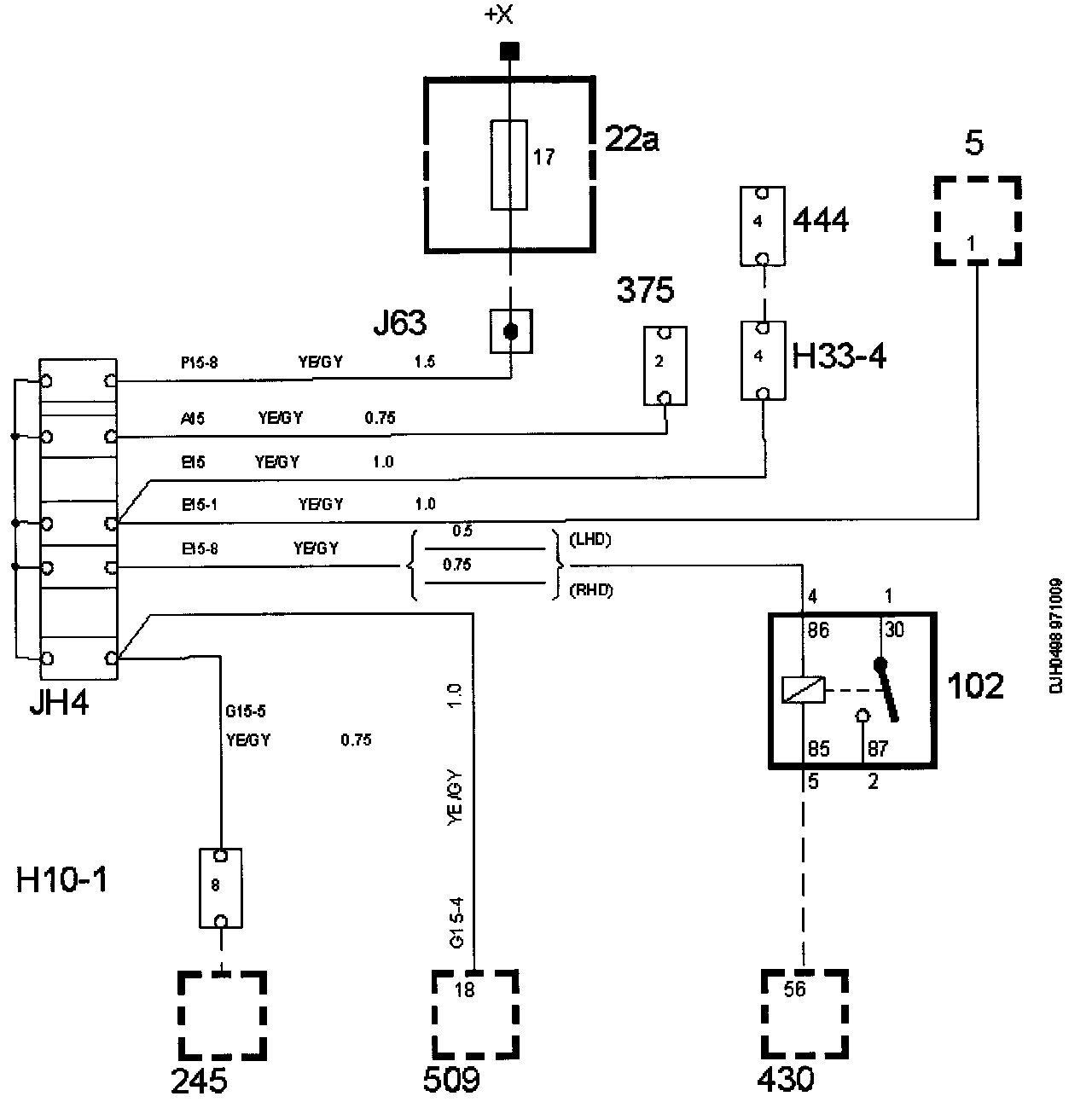

JH4

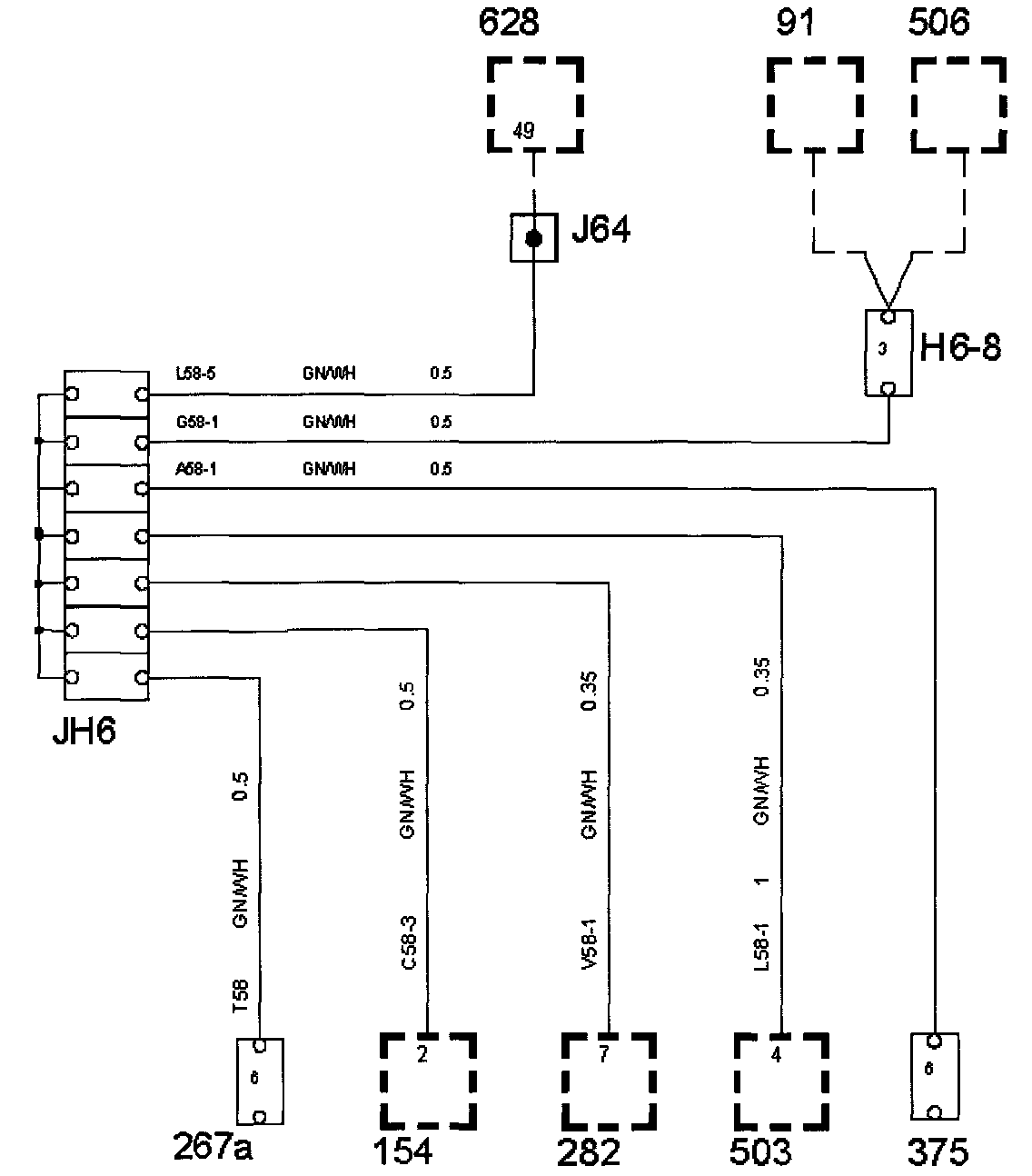

JH6
