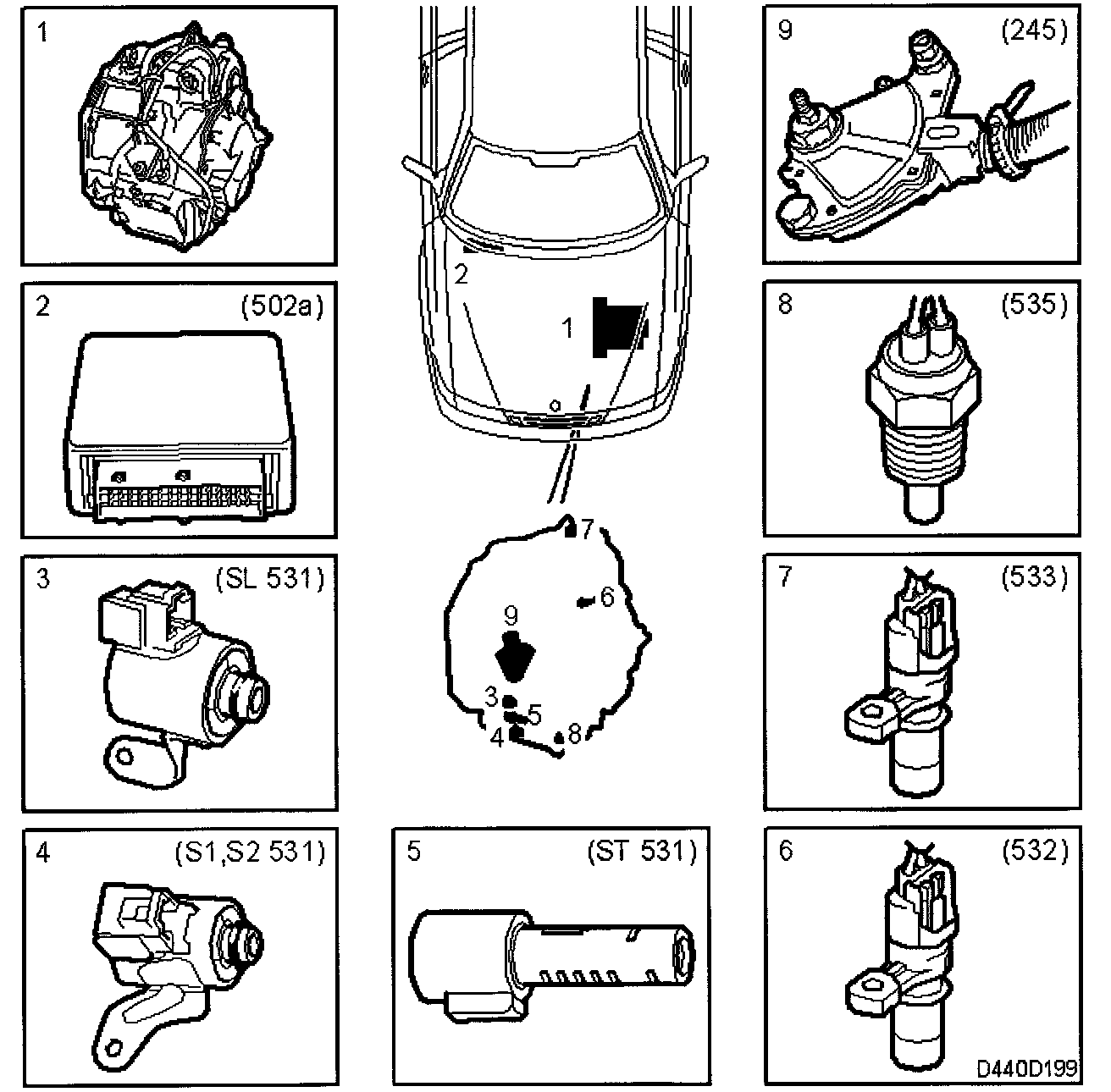

Component Locations

The automatic transmission consists of the following main components.
1. Automatic transmission
2. Control module (TCM) 502
3. Solenoid valves for shifting, (S1 and S2) 531
4. Solenoid valve for Lock-up (SL) 531
5. Solenoid valve for system pressure (ST) 531
6. Input shaft speed sensor 532
7. Output shaft speed sensor 533
8. Transmission fluid temperature sensor 535
9. Selector lever position sensor 245
