Checking Test Value

Checking Test Value












- Turn the ignition switch to the ON position.

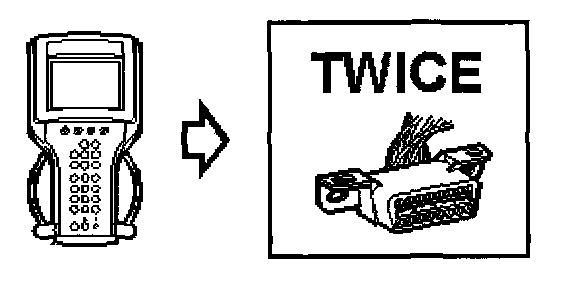

- Contact TWICE.







Test value: Ignition +15 (DICE)

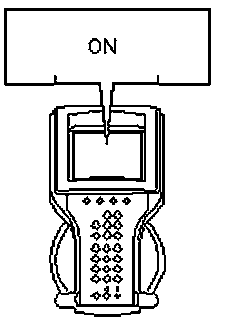

The reading should be: ON

Checking the wiring harness.
Jiggle the leads and in-line connectors at several places and in different directions to reveal intermittent breaks and short circuits in the wiring harness. Observe the multimeter, test lamp or diagnostic tool while doing this.

Is the function correct?

NO - Continue with Checking Test Value

YES - Choice of Gearbox

No power supply (+15 circuit) to TWICE

After performing this procedure Rectifying the Lead
