Checking the Starting Interlock Contacts

Checking the Starting Interlock Contacts

















WARNING
Check that the selector lever is in position P and the handbrake applied.

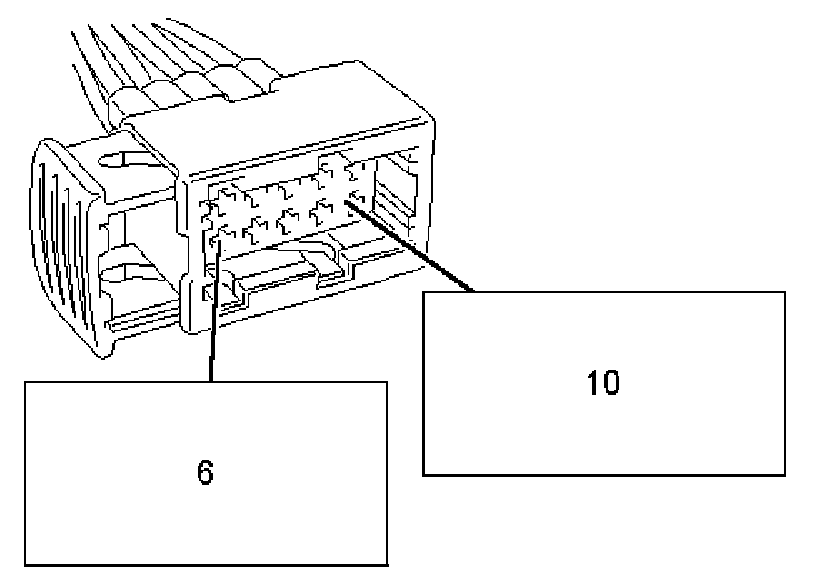

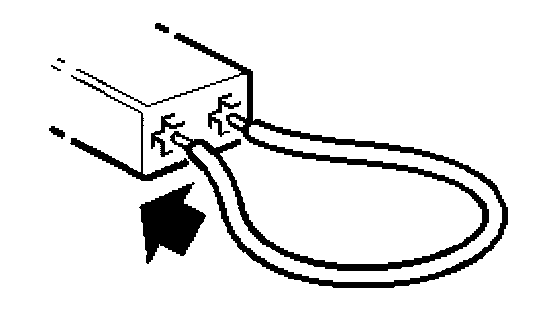

- Connect a jumper lead between pins 6 and 10 of the female connector.







- Turn the ignition switch to START.

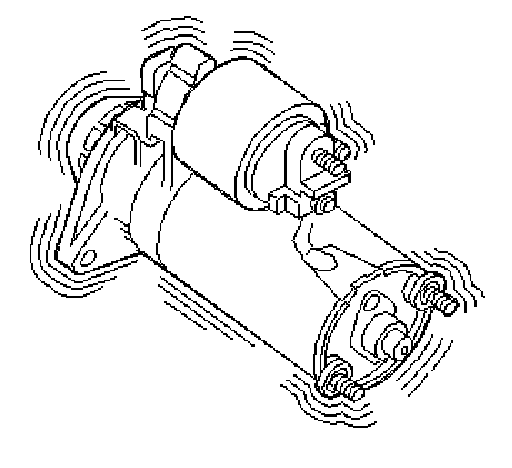

- The starter motor should run.

Is the function correct?

NO - Checking the Relay Power Supply

YES - Changing Components - I
