Prepared Trailer Hitch Installation



Circuit Schematic:

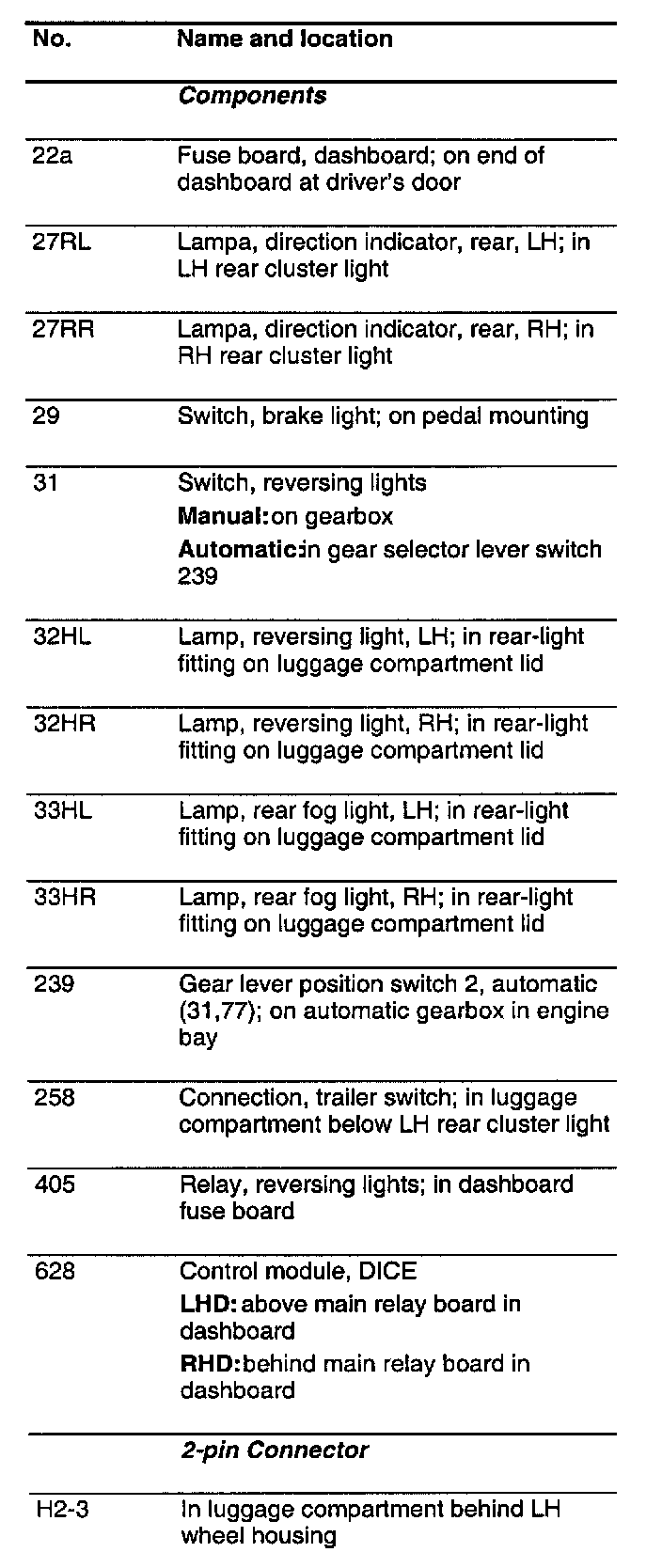

Locations Part 1:

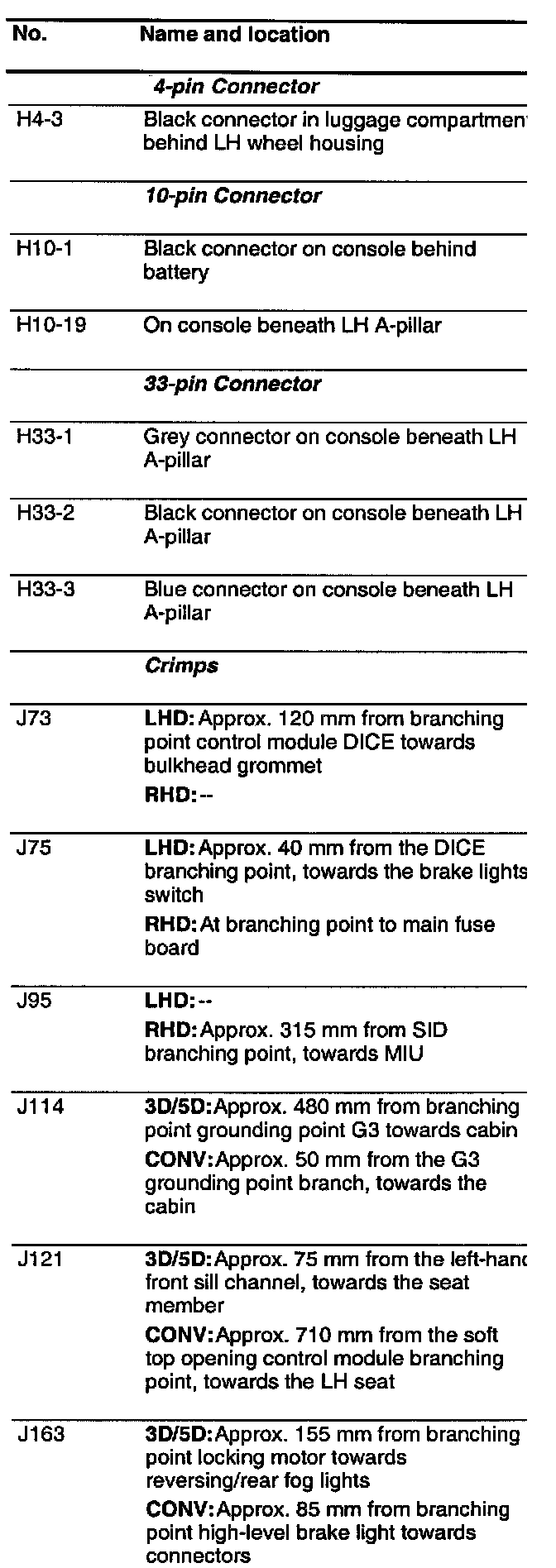

Locations Part 2:

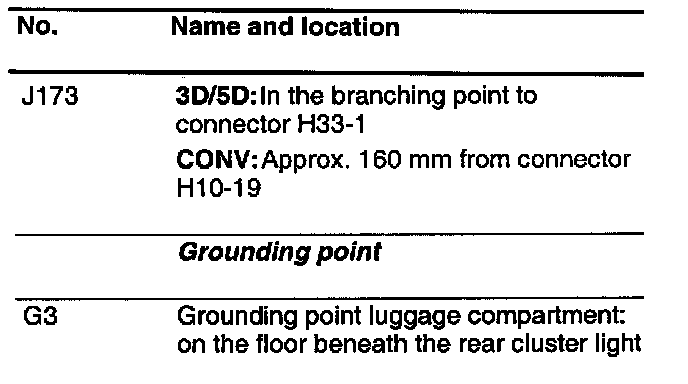

Locations Part 3:
