G34P

Location:

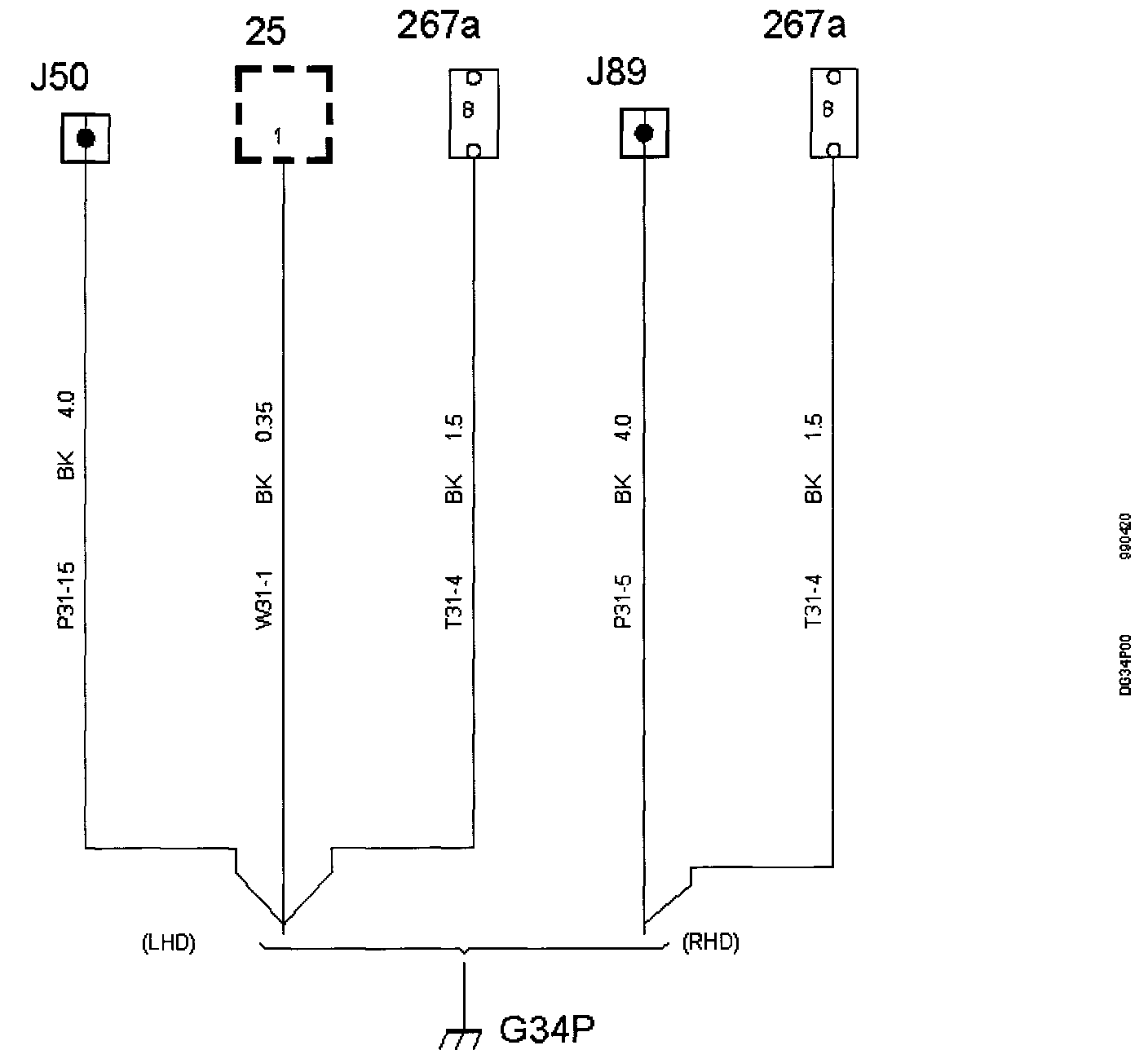

Schematic:

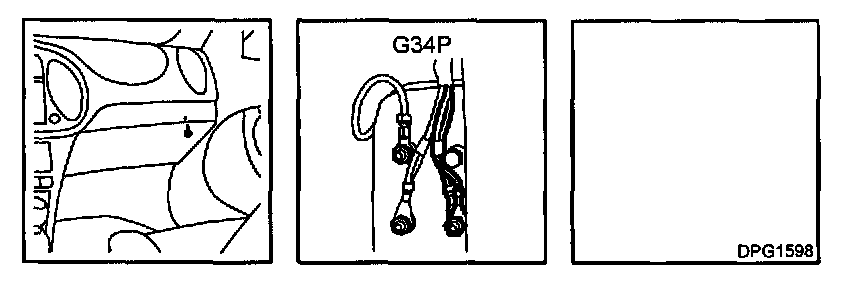

Location: in the cabin beneath RH A-pillar

A. Connected-in components for left-hand-drive car
25 Switch, hazard flashers
267a/353 Connector, radio, switch A
Via crimp J50
220 Control, ventilation fan
252R Switch, electrically heated rear seat
354 Amplifier, audio system
439 Solenoid, gear selector, SHIFT LOCK
506 Switch, WINTER
535 Temperature sensor, gearbox oil

B. Connected-in components for right-hand-drive car
267a/353 Connector, radio, switch A
Via crimp J89
10 Switch, lights
25 Switch, hazard flashers
61 Stalk Switch, windscreen wipers
62F Motor, windscreen wipers
354 Amplifier, audio system
445 Data link Connector, 16-pin, CARB
