G3

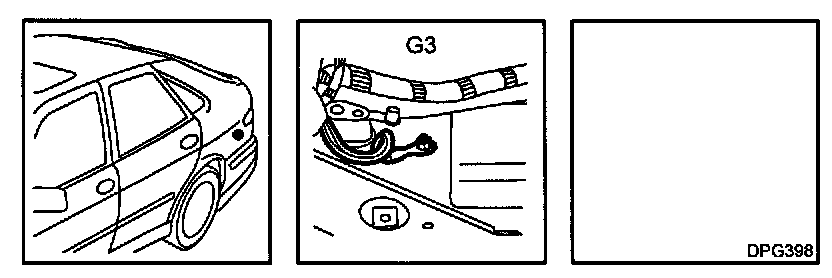

Location:

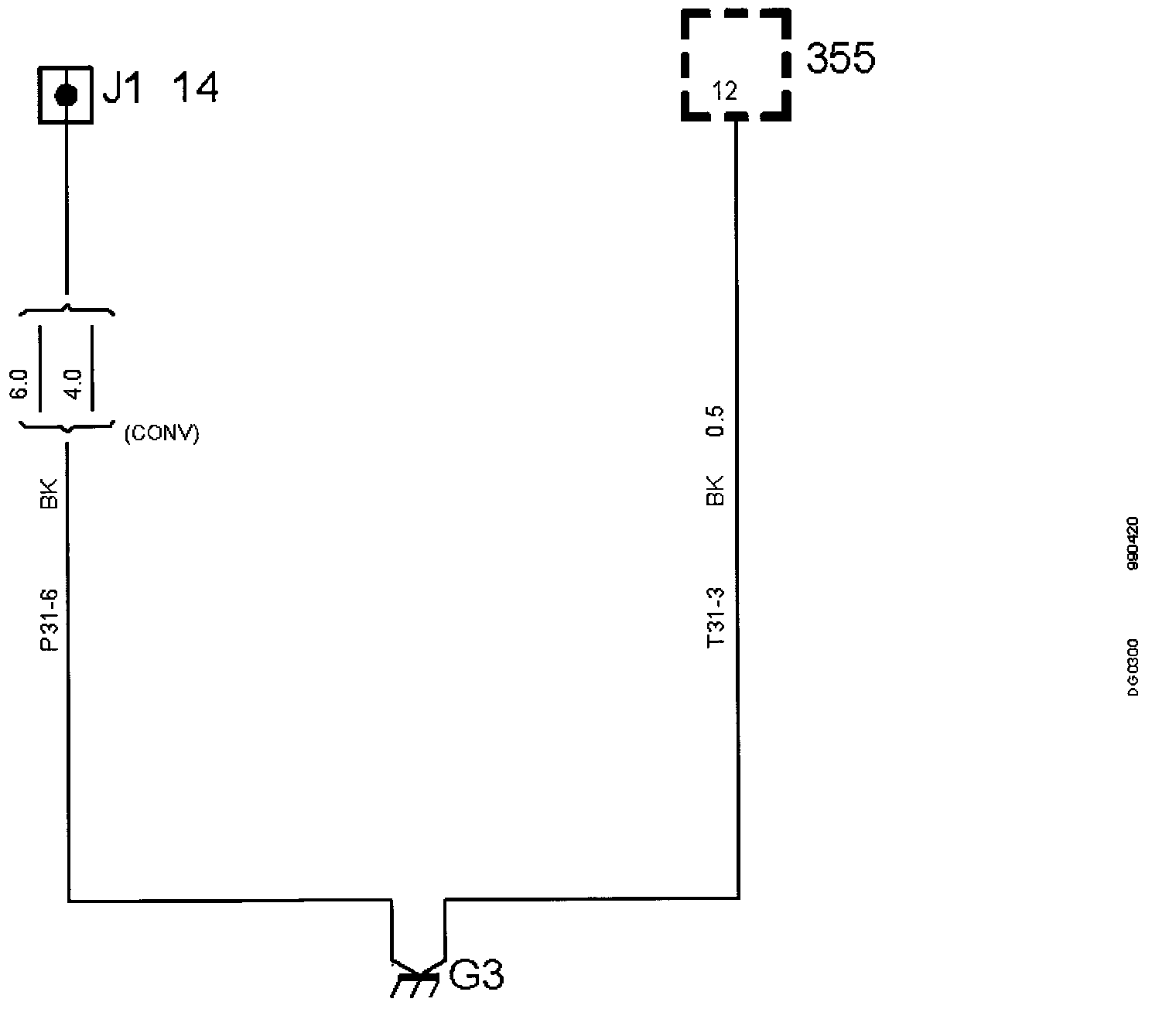

Schematic:

Location: in luggage compartment under LH rear cluster light

Components connected:
355 CD changer
Via crimp J114
13RL Lamp, rear light, LH
13RR Lamp, rear light, RH
27RL Lamp, direction indicator, rear, LH
27RR Lamp, direction indicator, rear, RH
30RL Lamp, brake light, LH
30RR Lamp, brake light, RH
50C Lamp, roof lighting, center
55 Lamp, lighting, luggage compartment
115 Heating element, rear window (CONV)
225LH Reading lamp, rear, LH (CONV)
225RH Reading lamp, rear, RH (CONV)
323 Motor, fuel pump
359LH Lamp, lighting, vanity mirror, LH
355h Connection, loudspeaker amplifier, audio system
647a/b Solenoid valve, soft-top, convertible
648a/b Solenoid valve, soft-top, convertible
Via crimp J163
which is in contact with crimp J114
15 Lamp, illumination numberplate
30RC Lamp, high-level brake light
32HL Lamp, reversing light, LH
32HR Lamp, reversing light, RH
33HL Lamp, rear fog light, LH
33HR Lamp, rear fog light, RH
56 Switch, luggage compartment lighting
62R Motor, rear-window wiper
115 Heating element, rear window
622 Microswitch, luggage compartment lock
