Home >> Saab >> 2000 >> 9-3 Hatchback (9400) L4-2.0L Turbo (B205) >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Crimps (Splices) >> Powertrain Harness, J26 - J42 >> J34

J34

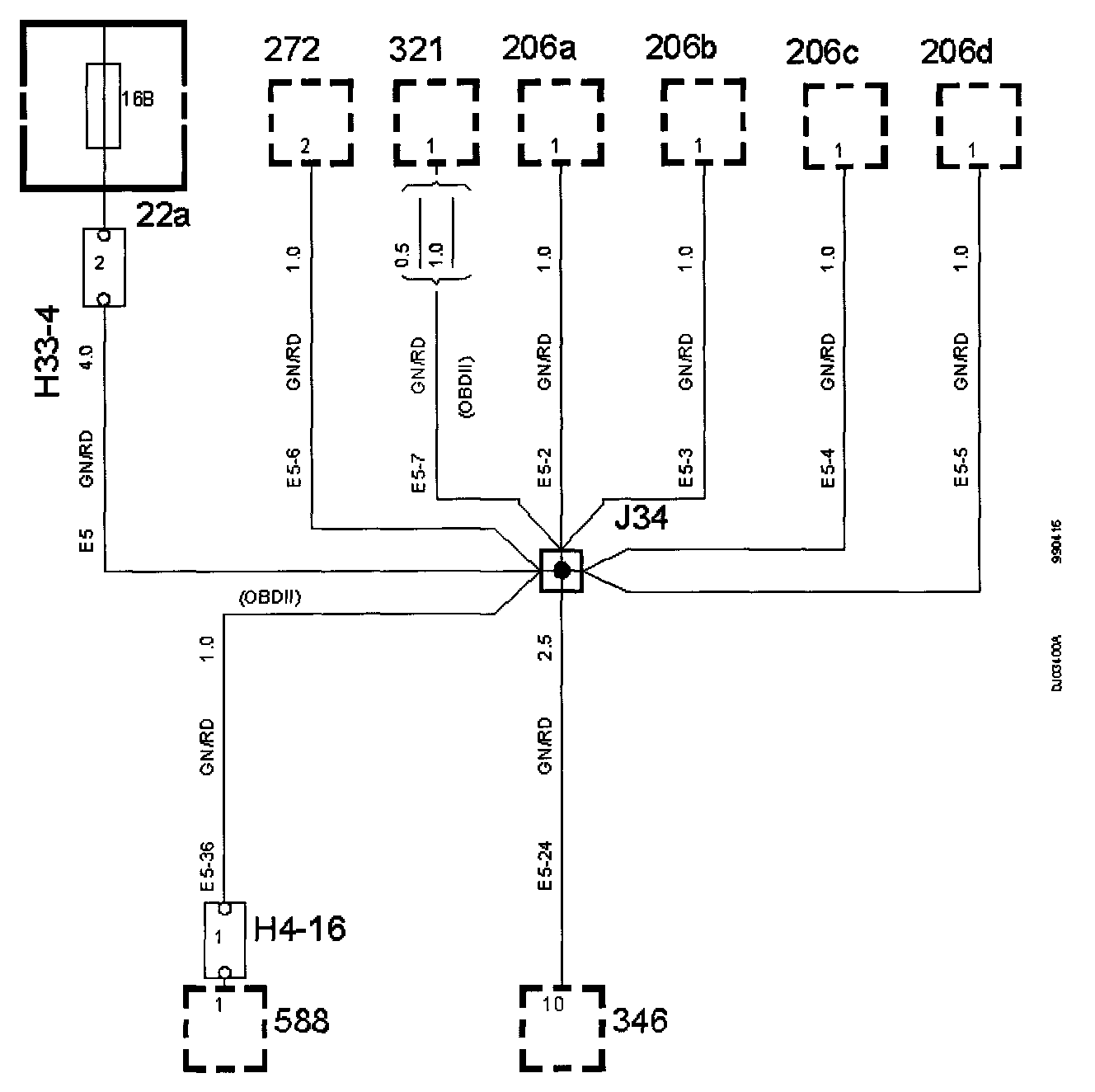

Trionic T5:

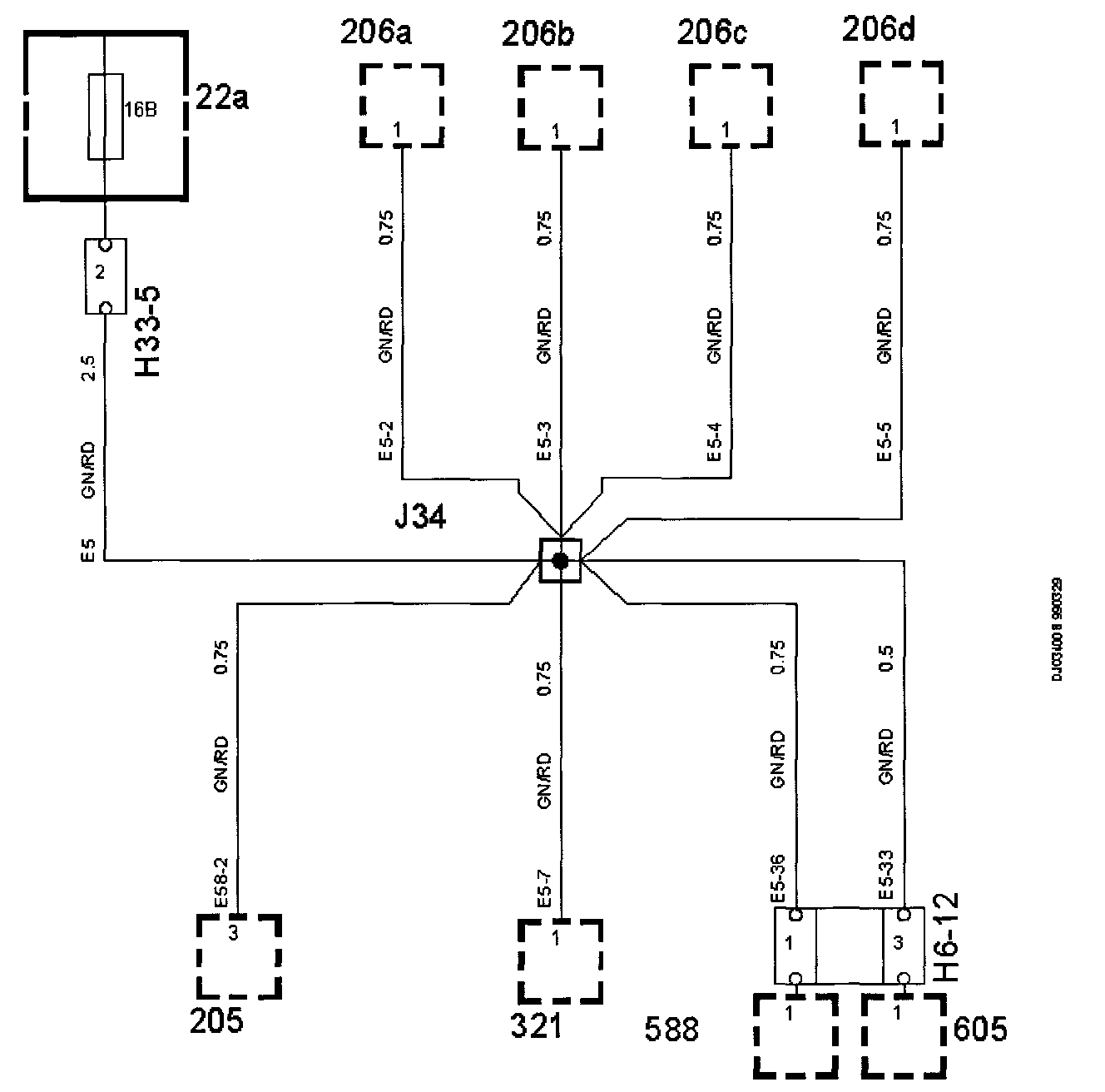

Trionic T7:
