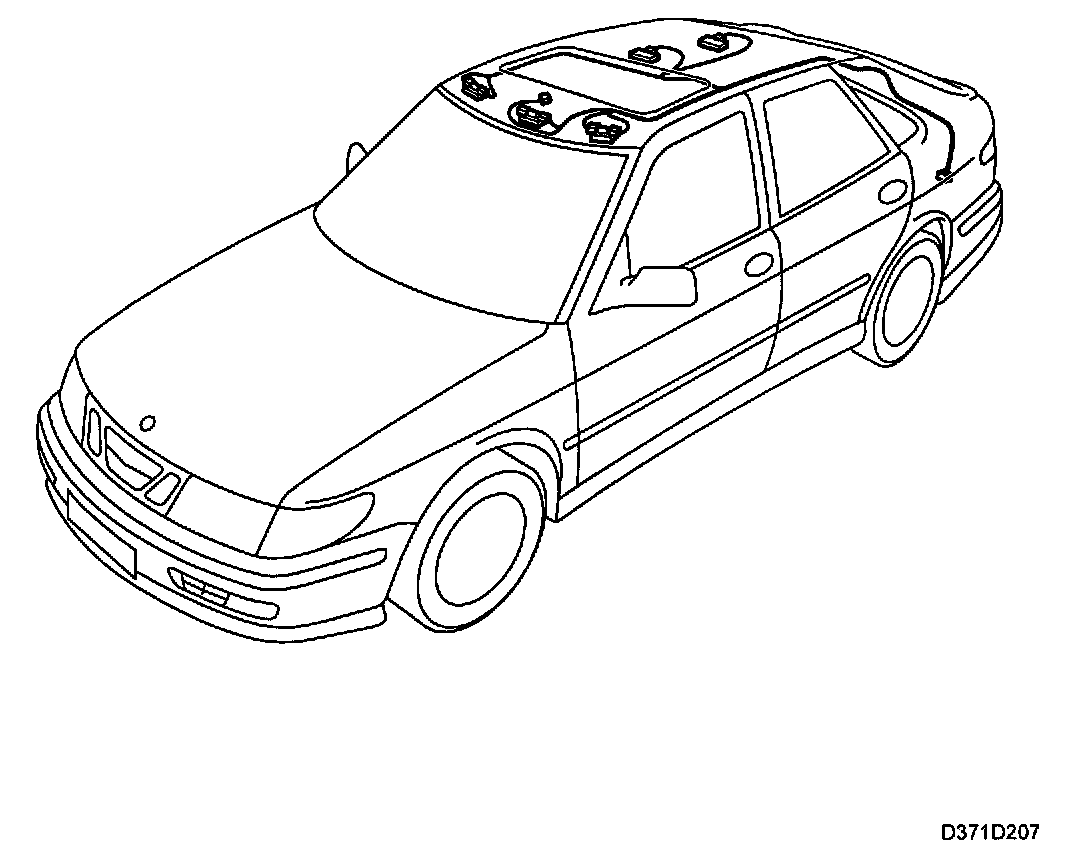

Wiring Harness, Roof

Wiring Harness, Roof:

Components connected:

SMS Component name
50C Lamp, roof lighting, center
50F Lamp, root lighting, front
53 Switch, cabin lighting
182 Motor, electrically operated sunroof
225FL Reading lamp, front, LH
225FR Reading lamp, front, RH
225RL Reading lamp, rear, LH
225RR Reading lamp, rear, RH
359LH Lamp, lighting, vanity mirror, LH
359RH Lamp, lighting, vanity mirror, RH
451 Glass-breakage sensor
634 Microphone, mobile telephone
