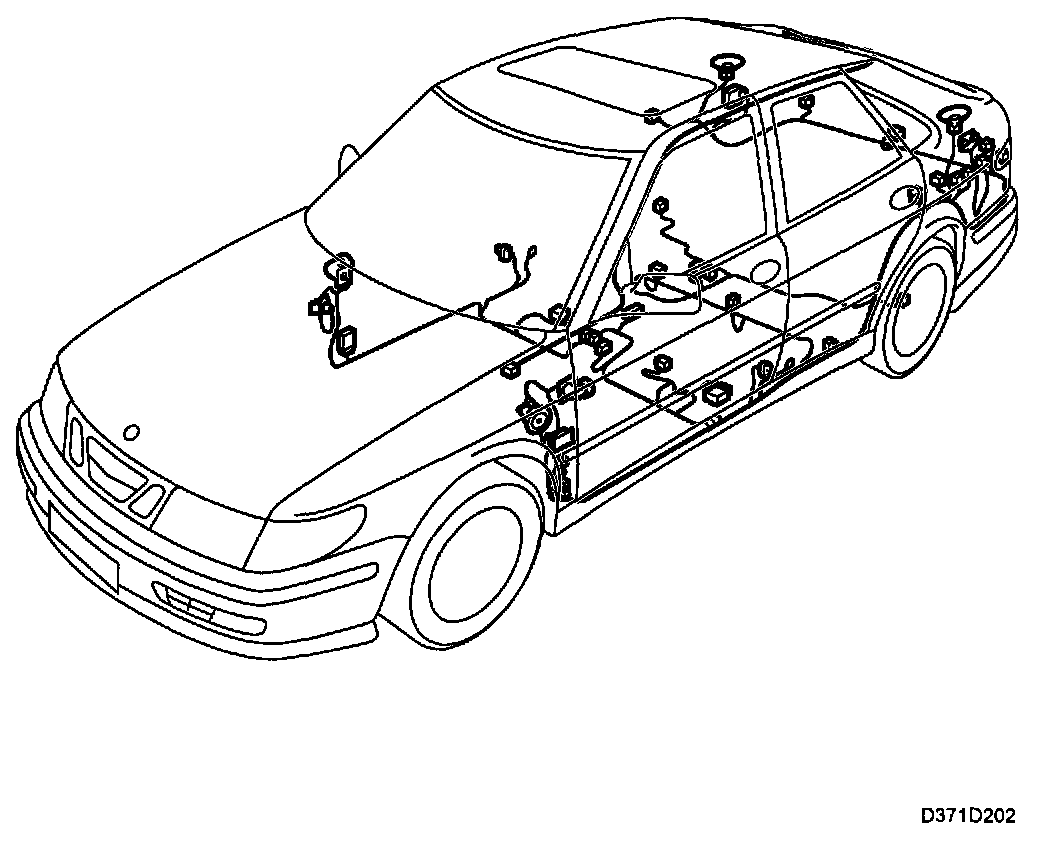

Wiring Harness, Rear

Wiring Harness, Rear:

Components connected:

SMS Component name
13RL Lamp, rear light, LH
13RR Lamp, rear light, RH
27RL Lamp, direction indicators, rear
27RR Lamp, direction indicator, rear, RH
30RL Lamp, brake light, LH
30RR Lamp, brake light, RH
46 Level monitor, fuel
54D Door switch, driver's side
54P Door switch, passenger side
54RL Door switch, rear, LH
54RR Door switch, rear, RH
55 Lamp, lighting, luggage compartment
64FL Heating pad, LH seat
64FR Heating pad, RH seat
64RL Heating pad, seat, rear, LH
64RR Heating pad, seat, rear, RH
70D Belt switch, driver
70P Belt switch, passenger
89LH Lamp, side flashers, LH
89RH Lamp, side flashers, RH
181 Switch, electrically operated sunroof
236D Seat-belt tensioner, driver
236P Seat-belt tensioner, passenger
258 Connector, trailer lighting
265 Antenna, radio, electrically operated
266RR Loudspeaker, parcel shelf, RH
266RL Loudspeaker, parcel shelf, LH
275 Siren, anti-theft alarm
298RL Speed sensor, wheel, LH rear
298RR Speed sensor, wheel, RH rear
333Db Airbag, side, driver
333Pb Airbag, side, driver
355 CD changer
355h Connection, CD-changer
355hb Connection, CD-changer
357D Electrically adjustable seat, driver
357P Electrically adjustable seat, passenger
386 Switch unit, electric window lifts
434a Solenoid, central locking system, filler cap
456 Antenna, remote control, central locking system
457 Angle sensor
463 Antenna unit, immobilizer
514a Switch, simultaneous central locking
585 Pressure sensor, EVAP
588 Solenoid valve, shut-off, EVAP
614P Sensor for loaded seat pad, passenger, front
632 Control module TWICE
