Wiring Harness, Luggage Compartment Lid

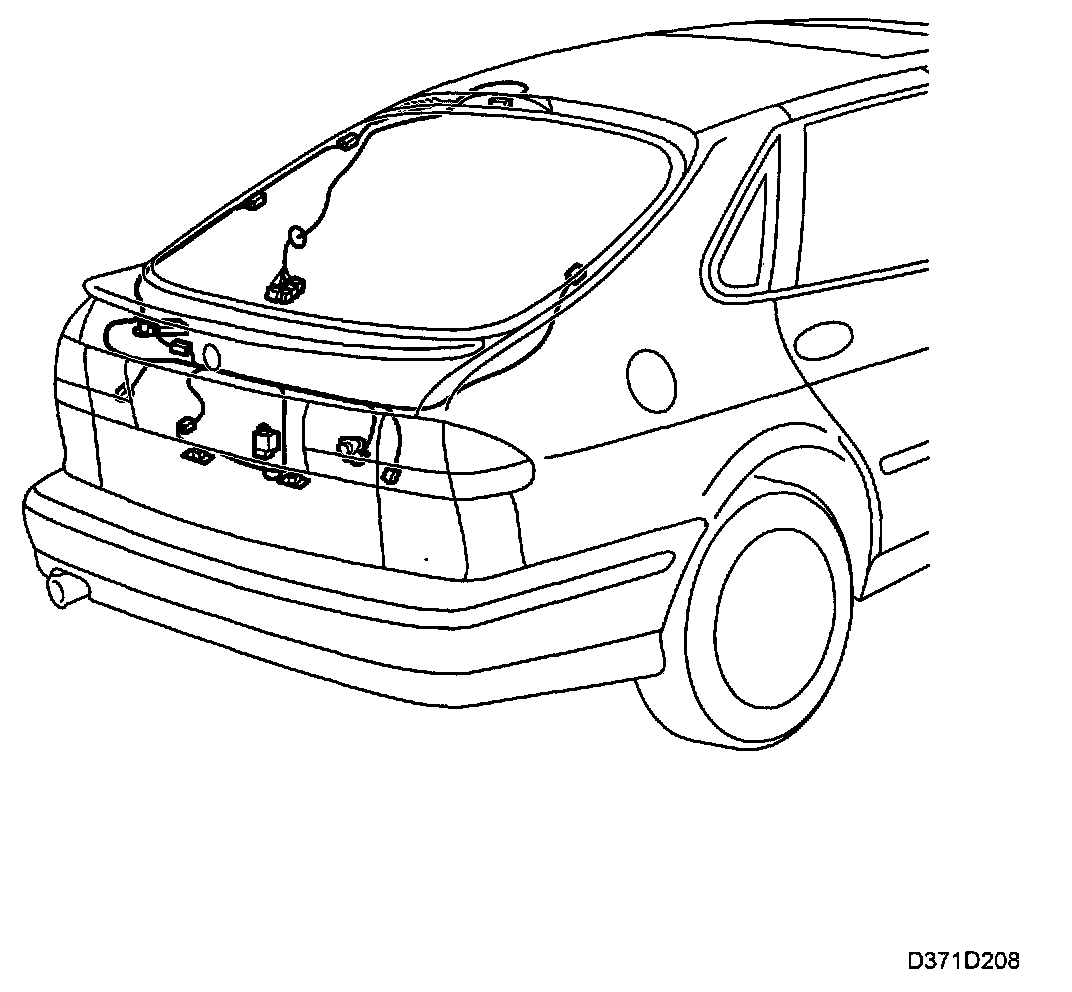

Wiring Harness, Luggage Compartment Lid:

Components connected:

SMS Component name
15 Lamp, illumination, numberplate
30RC Lamp, high-level brake light
32/33HL Lamp, reversing light/fog light, LH
32/33HR Lamp, reversing light/fog light, RH
56 Switch, luggage compartment lighting
62R Motor, rear-window wiper
115 Heating element, rear window
184H Motor, central locking, luggage compartment lid
622 Microswitch, luggage compartment lock
