Determining the Cause of the Charge Lamp's Faulty Operation

Determining the Cause of the Charge Lamp's Faulty Operation

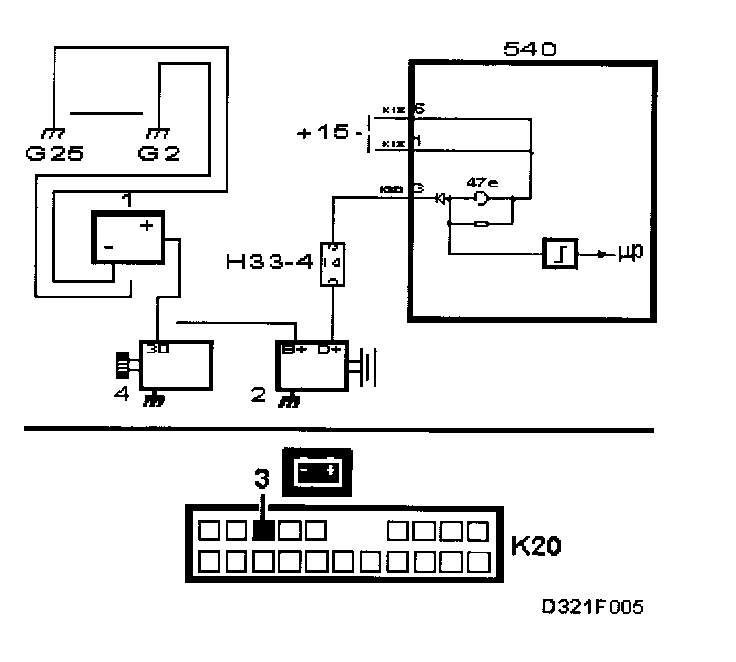

- Connect a jumper lead between terminal D+ on the generator and a good grounding point







- The charging indicator lamp In the main instrument unit should light up.

Is the function correct?

NO - Grounding, Charging Lamp

YES - Continue with Determining the Cause of the Charge Lamp's Faulty Operation







Rectify the generator, Electrical system, 'Charging System'. Testing and Inspection

After performing this procedure Final Check - II
