Checking Charge Lamp Functionality












- Turn the ignition switch to the ON position.

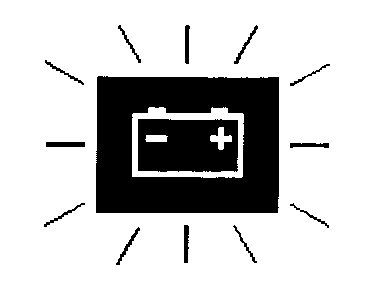

- The charging indicator lamp in the main instrument unit should light up.

Is the function correct?

NO - Determining the Cause of the Charge Lamp's Faulty Operation

YES - Checking the Generator's Charging Voltage
