Generator 90A

Generator 90A

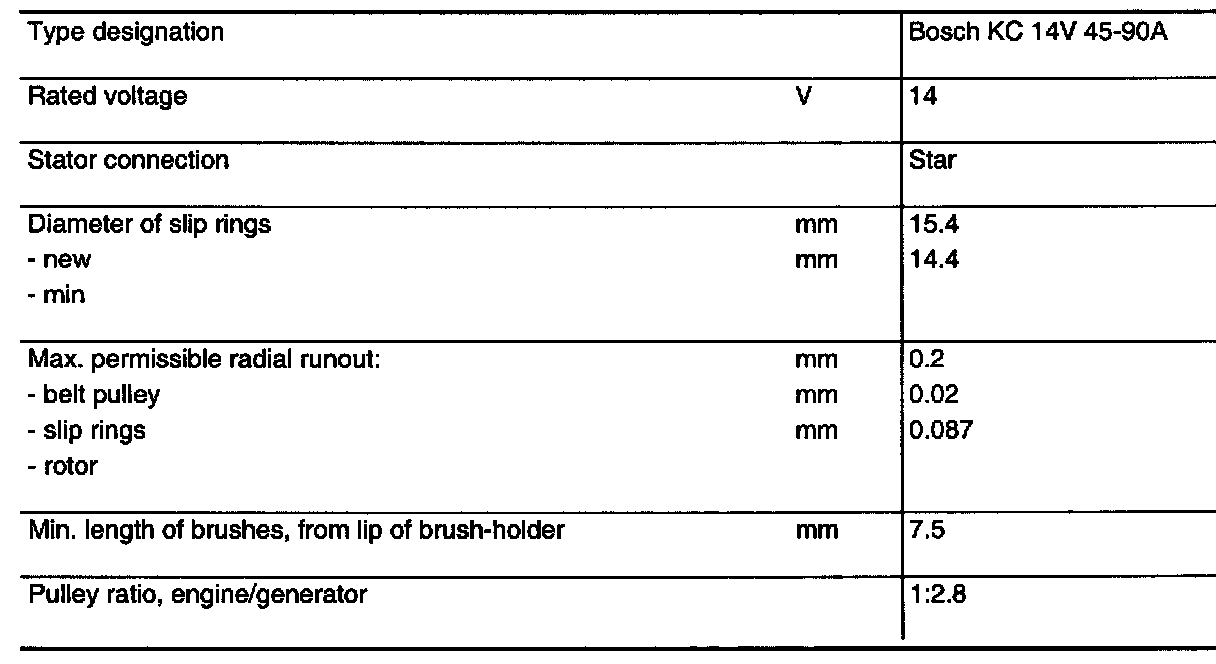

Generator 90A:

Rated Voltage 14V

Stator Connection Star

Slip Ring Diameter:
New 15.8mm
Minimum 14.8mm

Maximum Permissible Radial Runout
Belt Pulley 0.2mm
Slip Rings 0.02mm
Rotor 0.087mm

Minimum Length of Brushes, From Brush Holder 7.5mm

Pulley Ratio, Engine/Generator 1:2.8

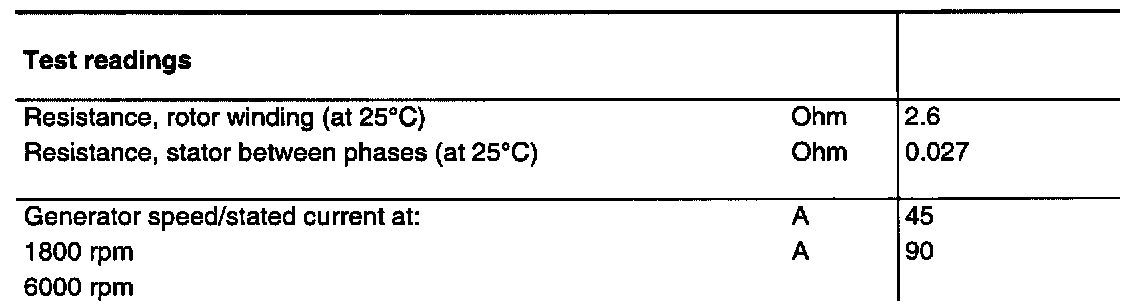

Test Values

Resistance, Armature Winding 2.6 Ohm

Resistance, Between Stator Phases 0.027 Ohm

Current Output at:
1800 RPM 45A
6000 RPM 90A
