System Specifications






Transmission Fluid Temperature Sensor





Selector Lever Position Sensor

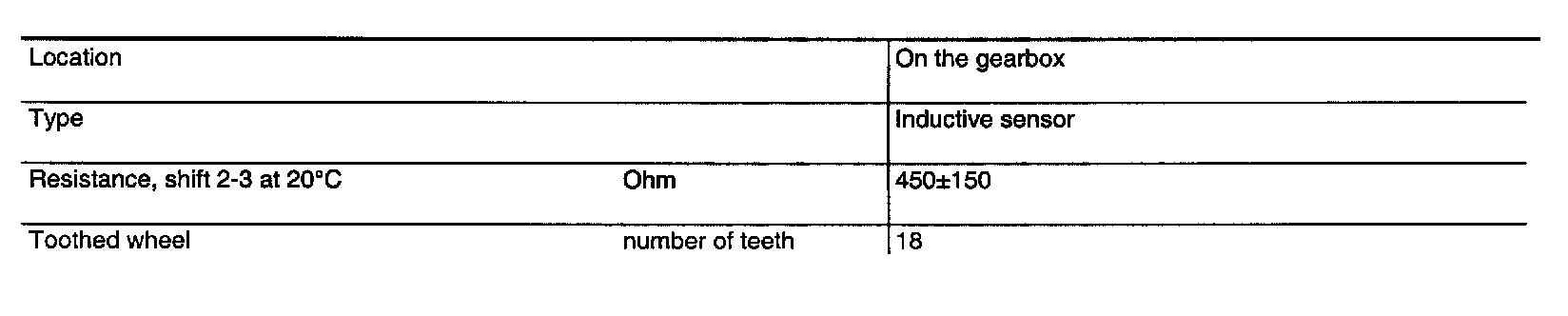

Sensor Input Shaft Speed

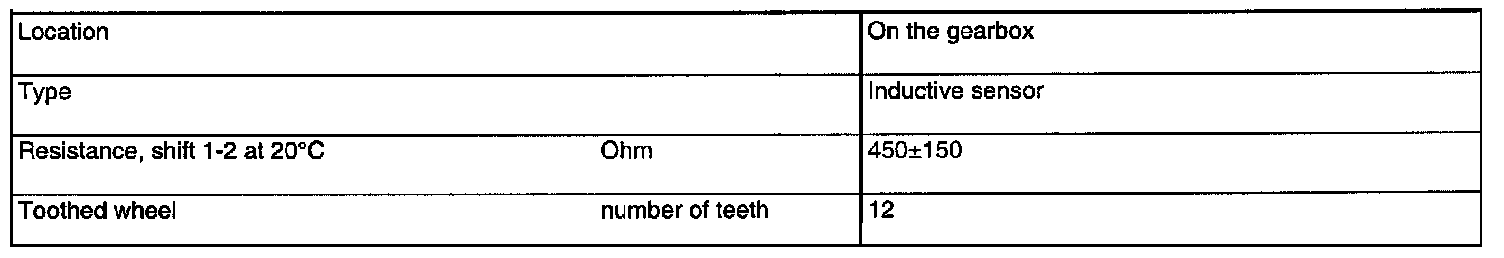

Sensor Output Shaft Speed





Solenoid Valve, Lock Up (SL)

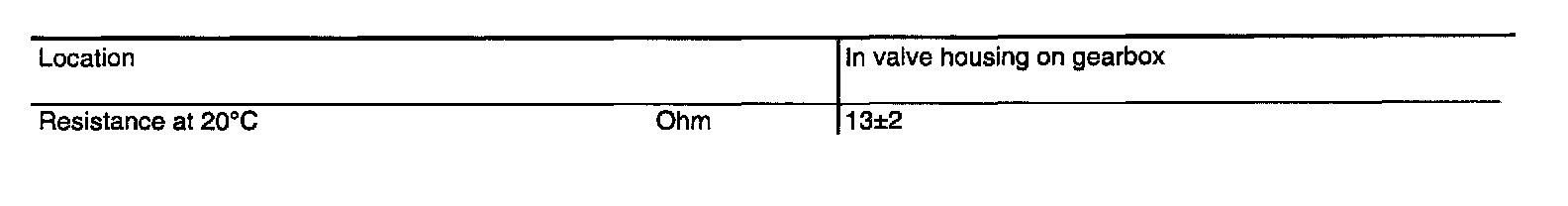

Solenoid Valve Shifting (S1 and S2)

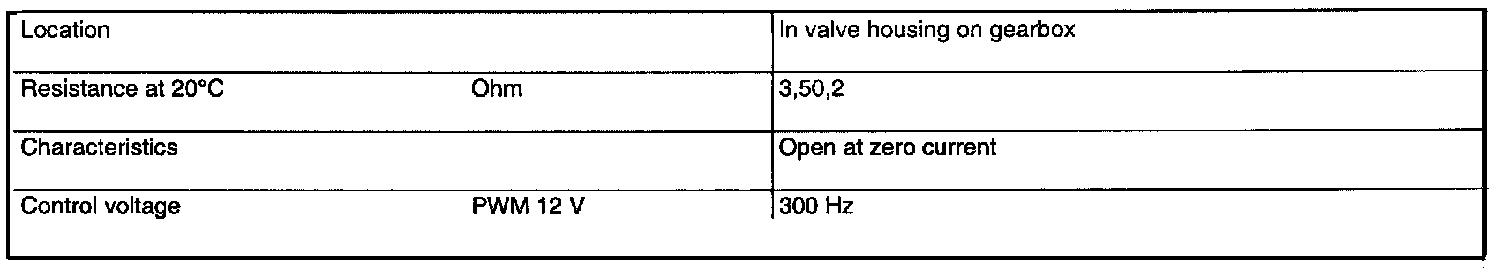

Solenoid Valve Pressure Control
