Checking the Relay Power Supply

Checking The Relay Power Supply

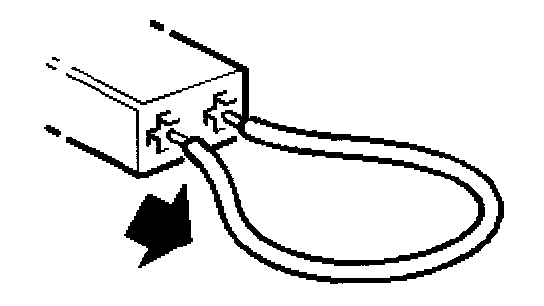

- Remove the jumper

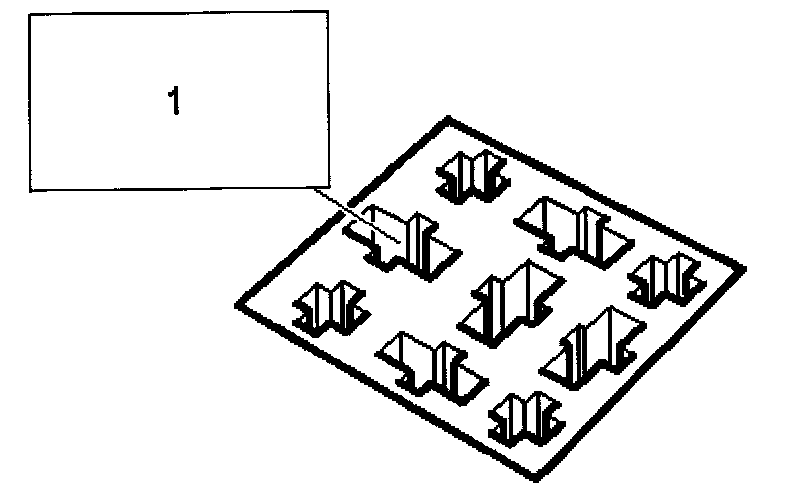

- Connect test lamp 86 11 857 between pin 1(30) of the relay and a good grounding point.







- The test lamp should light.

Checking The Wiring Harness
Jiggle the leads and in-line connectors at several places and in different directions to reveal intermittent breaks and short circuits in the wiring harness. Observe the multimeter test lamp or diagnostic tool while doing this.

Is the function correct?

NO - Rectifying the Lead - I

YES - Rectifying the Lead - IV
